The CNC lathe's advanced monitoring and control system allows for real-time monitoring of machining operations, enabling operators to make adjustments and optimize performance in real-time.
Max. Swing over Bed : Φ300mm
Max. Swing over slide : Φ100mm
Max. turning length : 230mm
Specifications | Unit | CK6130 | ||
Max. Swing over Bed | mm | Φ300 | ||
X-direction rail span | mm | 160 | ||
Z-direction rail span | mm | 240 | ||
Max. turning diameter of the slide | mm | Φ100 | ||
Distance between centers | mm | 320 | ||
Max. turning length | mm | 230 | ||
Center High | From the bed | mm | 150 | |
From the ground | mm | 1065 | ||
Spindle through hole diameter | mm | Φ48 | ||
Bar diameter | mm | Φ45 | ||
Optional hollow chuck tie rod through hole | mm | Φ40 | ||
Spindle end type | A2-5 | |||
chuck | mm | Manual 6’’ chuck (Optional) | ||
Spindle taper taper | No | Chuck | ||
Spindle limit speed | rpm | 2500 | ||
Tail stock sleeve diameter | mm | Φ52 | ||
Tail stock sleeve inner hole taper | No | MT4# | ||
Tail stock sleeve stroke | mm | 80 | ||
Tail stock form | Manual | |||
Number of electric tool holders | Position | 4 | ||
Knife square size | mm | 20×20(4- stations) | ||
Screw model | X Axis | mm | FDC2506-P3 | |
Z Axis | mm | FDC3210-P3 | ||
X/Z rapid traverse speed | m/min | 6/10 | ||
X travel | mm | 280 | ||
Minimum setting unit | mm | 0.001 | ||
main motor power | KW | 4 | ||
total power | KW | 10 | ||
Machine net weight | Kg | 1700 | ||
Dimensions (L×W×H) | mm | 2200×1160×1620 |

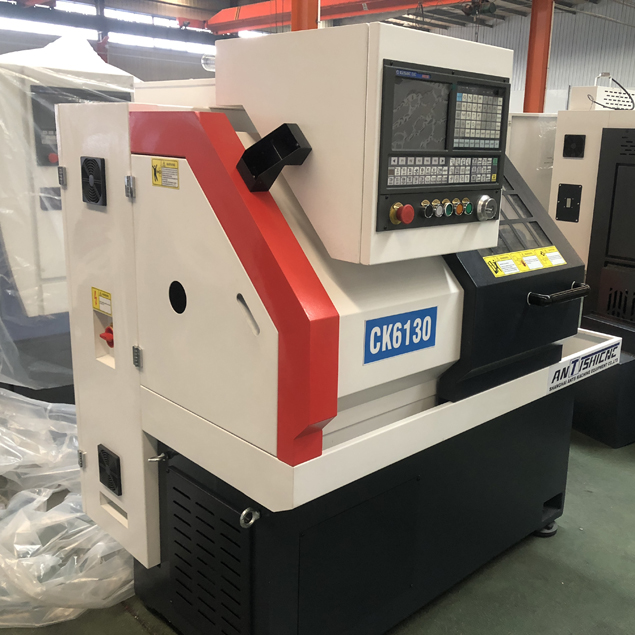

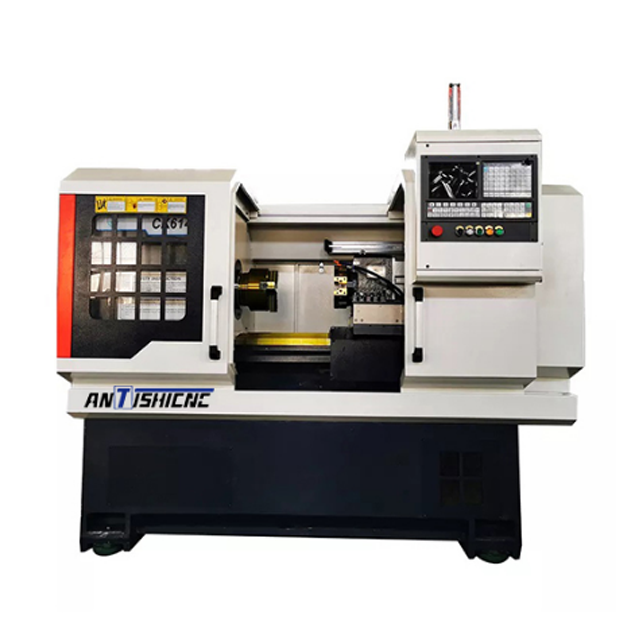

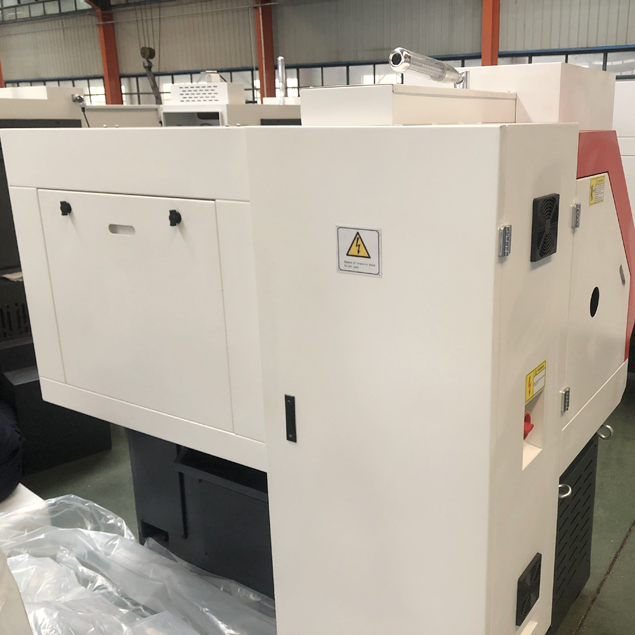

CK6130 machine tools is a mature product has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.This series machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Features
1. This series of machine tools is a mature product mainly exported by the company. The whole machine has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
2.The optimized design of the headstock is suitable for the turning of disc and shaft parts. It can process straight lines, arcs, metric and inch threads, and multi-thread threads. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
3.The machine tool guide rail and the saddle guide rail are made of hard guide rails of special materials. After high frequency quenching, they are super-hard and wear-resistant, durable and have good machining accuracy.
4.The numerical control system adopts GSK980TC3 system, and adopts domestic famous ball screw and high-precision screw bearing.
5.Adopt high-precision spindle bearing set and the spindle with precise assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity.
6.Each lubricating point adopts a forced automatic lubricating device for fixed-point quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the oil quantity is insufficient, a warning signal is automatically generated.
7.CK6130 is equipped with a domestic three-jaw self-centering manual chuck as standard.
8.The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and facilitate the cleaning of the iron filings.
Name | Specifications | Quantity | Brand |
Control system | GSK 980TC3 | 1 Set | GSK |
Spindle structure | Step-less | 1 Set | Domestic |
Screw bearing | Flange bearing | 1 Set | Domestic |
Spindle motor | 4 KW | 1 Set | Domestic |
Guide | High-frequency quenching | 1 Set | Domestic |
Ball screw | 2506/3210 | 1 Set | Domestic |
Knife holder | 4-station electric tool rest | 1 Set | Domestic |
Automatic lubrication device | RBCLB-2BZK | 1 Set | HeJin |
Three-jaw manual chuck | K11160 | 1 Set | Domestic |
Cooling pump | P=90/120W | 1 Set | Domestic |
