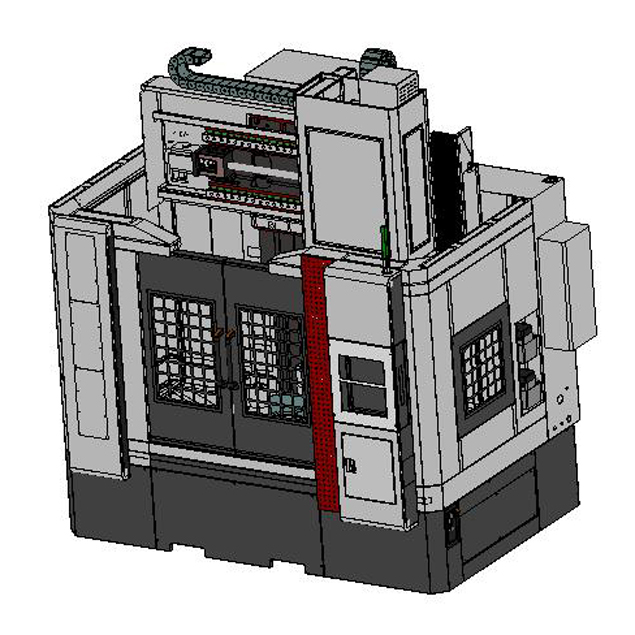

Special hydraulic fixtures are designed for processing large diameter workpieces. It greatly improves processing efficiency and reduces the labor intensity of workers.
Max turning diameter : Φ1600mm
Max turning height : 1550mm
Parameter | SAL51160 | |
Machine tool structure
|
Guide rail structure | Z hard, X-line |
Processing feed method | RAM | |
Processing capacity
|
Maximum rotation diameter | Workpiece height ≤750mm:φ1750mm Workpiece height > 750mm:φ1600mm |
Maximum turning diameter | Φ1600mm | |
Maximum turning height | 1550mm | |
Maximum boring height | 1550mm | |
Maximum bearing capacity of table | 2T | |
journey
|
X-axis | -245mm~+980mm |
Z axis(RAM) | 1600mm | |
Horizontal Lifting | 680mm | |
The distance between the end face of the tool rest and the end face of the flower plate at the highest position of the beam | 30mm~1630mm | |
Rapid traverse rate
|
X fast traverse rate | 8m/min |
Z fast traverse rate | 8m/min | |
Spindle
|
Spindle speed | 100-1000r/min |
Front double row roller bearings | NN3026K | |
Rear double row roller bearings | NN3020K | |
Cross roller bearing | XR882055 Bearing inner diameter φ901.7mm Bearing outer diameter φ1117.6mm |
|
Spindle outer diameter | Φ125mm | |
Spindle inner diameter | Φ58mm | |
Work holding chuck diameter | Φ1600mm | |
Repeatability | ±0.005mm | |
Factory accuracy
|
Positioning accuracy | ±0.008mm |
Minimum positioning unit | 0.001mm | |
Control System | Servo main motor | 15KW/200RPM |
X servo motor | 36Nm/1500RPM | |
Z servo motor (brake) | 36Nm/1500RPM | |
Beam motor/turbo worm reducer | 2.2KW/1500RPM/NMRV130 | |
Displayer | Chinese | |
Transmission interface | USB | |
Cutting cooling and chip removal system
(optional) |
cooling motor | 120W |
Pump water output | 50L/min | |
Cutting fluid tank capacity | 180L | |
Chip conveyor | ||
Electricity demand | Power supply | 380V |
Power consumption | 40KW | |
The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
environment humidity | <85% | |
Hydraulic power station | 1.5KW/50Hz-50L | |
Other parameters of the equipment | Equipment weight | 17 TON |
Packing size (length x width x height) | 4150X3911X6986(mm) |

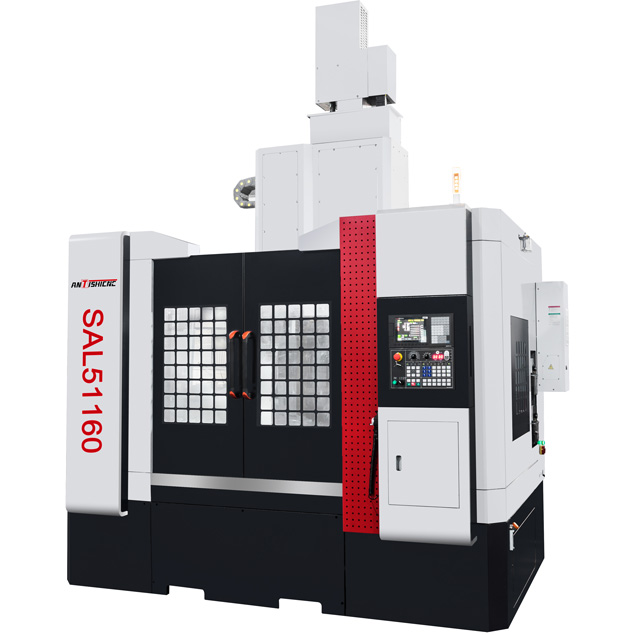

SAL51160 vertical lathe is a high speed, high efficiency, high rigidity processing equipment, for processing (250-355) national standard and non-standard motor housing, designed a special hydraulic fixture. Greatly improve the processing efficiency and reduce the labor intensity of workers. And can realize the upper and lower plane of the electric shell, the stop edge, the iron core machining (rough turning and fine turning). The assembly accuracy and noise of the motor in the later stage are greatly improved. The electrical components in the electrical cabinet are made of Schneider brand, and the special cooling air conditioner is used to cool and dehumidify the electrical cabinet, so that the machine tool has a safe, stable and reliable power control system.

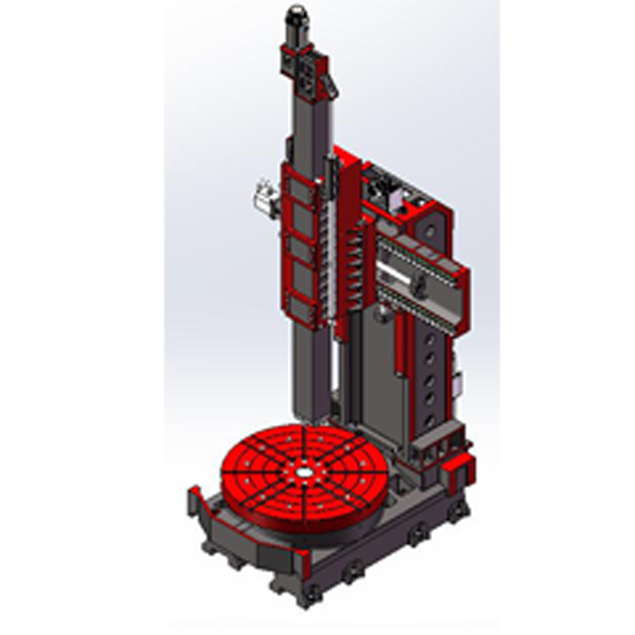

The Z axis of the machine tool is the movement of the ram, and the X axis is the movement of the drag plate on the beam. The Z-axis ram of the machine tool is a built-in square guide post, the guide rail adopts the plastination process, and the high pressure lubricating oil pump is used inside to supply oil, so that the guide post has the characteristics of static pressure guide rail.
Machine tools and configuration | |||
NO | Name | Specification | Quantity |
1 | Host | SAL51160 | 1 SET |
2 | CNC system | 1 SET | |
3 | Turbo worm reducer | NMRV130-2.2KW | 1 SET |
4 | X, Z servo motor | CHINA | 2 SETS |
5 | Beam screw bearing | 760210TBT/6209 | 1 SET |
6 | X roller linear guide | Taiwan-CHINA | 1 SET |
7 | x-bearing | CHINA | 1 SET |
8 | z-bearing | CHINA | 1 SET |
9 | Servo main motor | MK | 1 SET |
10 | Spindle bearings | CHINA | 1 SET |
11 | X lead screw | CHINA | 1 SET |
12 | Z lead screw | CHINA | 1 SET |
13 | Beam lifting T-screw | CHINA | 1 SET |
14 | Main motor servo driver | CHINA | 1 SET |
15 | air switch | CHINA | 1 SET |
16 | Intermediate relay | CHINA | 1 SET |
17 | switching power supply | Taiwan-CHINA | 1 SET |
18 | Nitrogen balancing cylinder | CHINA | 1 SET |
19 | Chip conveyor (optional) | CHINA | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
