Easy maintenance, with modular components and easy access to parts, reducing downtime and increasing overall equipment availability.
Processing material dia. : Φ2mm-20mm
drilling capacity : Φ8mm
Main axis configuration | The main and auxiliary shafts are electronically controlled servo motorized spindles, oil-cooled. The speed is 12000 rpm. | ||
Processing material diameter | Φ2mm-20mm | ||
Feeding length at one time | 140mm | ||
Spindle setting working speed | 8000 Rpm | ||
Turning tool | Number of tools | 17pcs | |
Tool Specifications | □12x12mm | ||

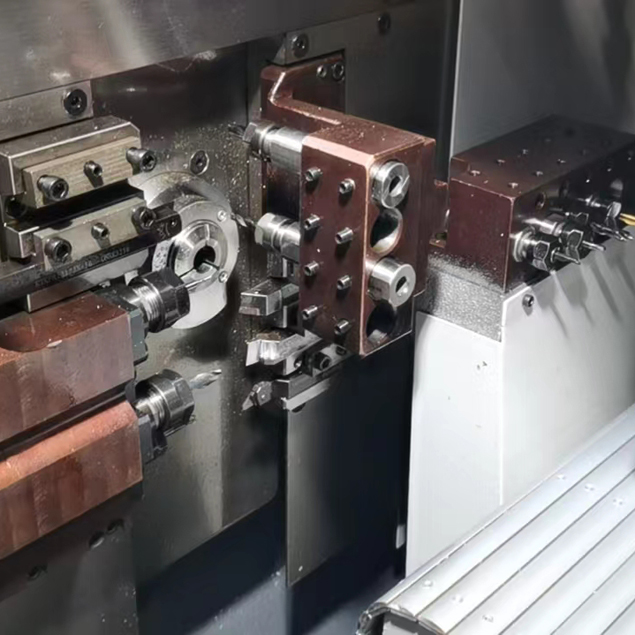

End processing | Number of tools | Front Fixing Tool | 4pcs |
drilling capacity | Fixed Tool | Φ8mm | |
Maximum cutting and tapping capacity | Fixed Tool | M6 | |
Lateral Rotation Tool | Number of tools | 4pcs | |
Tool Specifications | ER16*2+ER11*2 | ||
Drilling Capacity | φ8mm | ||
Tapping Capacity | M6 | ||
Milling Capacity | φ10mm | ||
Max. saw blade milling cutter diameter | 30 mm | ||
Max. speed | 5000min-1 | ||
power | 0.75Kw | ||
Rapid speed | Z1 | 24m/min | |
X1 | 30m/min | ||
Y1 | 30m/min | ||
Spindle maximum working revolutions | 8000min-1 | ||
Spindle positioning accuracy | C-axis control (0.001º) | ||
Spindle power | 3.7/2.2kw | ||
Spindle through hole diameter | φ22mm | ||
Coolant capacity | 100L | ||
Cooling motor power | 0.85kw | ||
Dimensions (L*W*H) | 2100*1100*1780mm | ||
Machine weight | 2800kg | ||

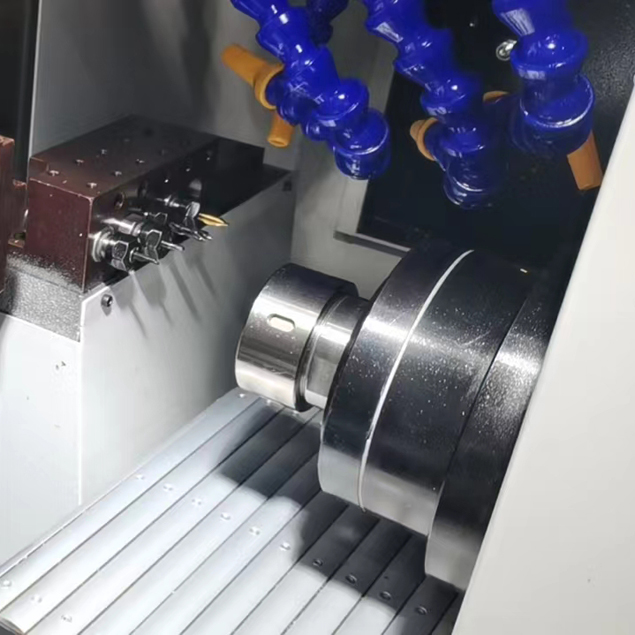

Sub-spindle (SUB) configuration | |||
Max. machining diameter | φ20mm | ||
Max. discharge part length | 80mm (the rear discharge length is not limited) | ||
Max. clamping protrusion length | 50mm | ||
Fixed processing tool holder and driven tool holder | ER11/ER16 | 5 pieces (2 power knives and 3 fixed knives can be selected) or 4 power knives | |
Rapid speed | Z2 | 24m/min | |
X2 | 30m/min | ||
Max. number of revolutions of the second spindle | 8,000min-1 | ||
Positioning accuracy of the second spindle | C-axis control (0.001º) | ||
Second spindle power | 2.2/1.1kw |

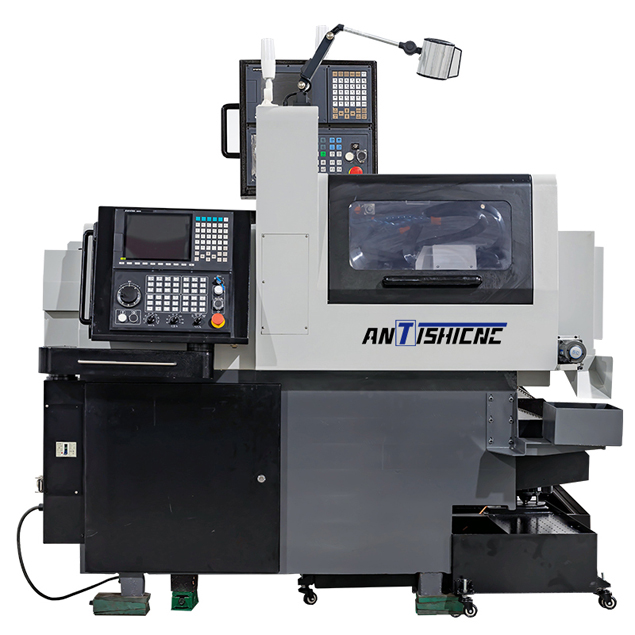

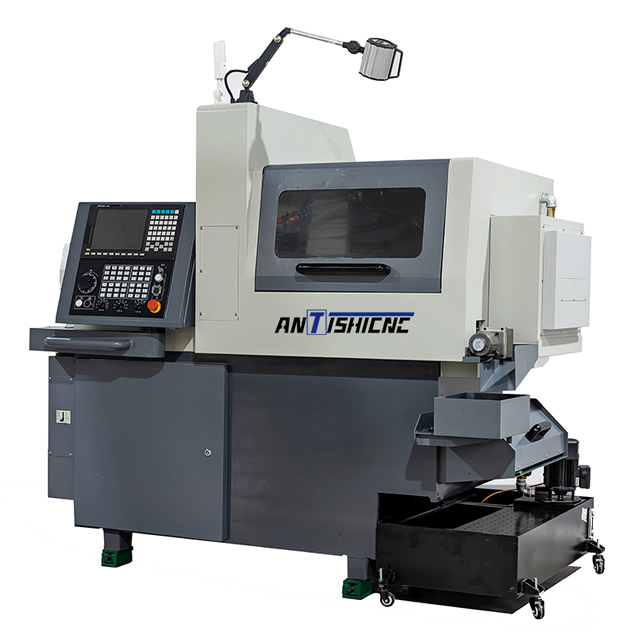

According to the product pictures provided, after analysis by Shanghai ANTISHI technical team, we recommend our G205E Swiss-type CNC longitudinal cutting machine tool. This CNC lathe can meet all processing procedures such as cutting, milling, drilling, and grinding for the above products. If there are products with more changeable process and process requirements, our company can provide other types of machine tools for customers to choose according to customers’ processing requirements.
Name | Specifications | Quantity/Set | Details |
CNC longitudinal cutting automatic lathe | RPJY-G205E | 1/Set | —— |
Oil film automatic feeder | 20 Type | 1/Set | —— |
Number of turning tools | 12×12■/ 5PCS | 1/Set | Standard configuration |
Spindle side power unit | ER16*2+ER11*2 | 1/Set | Standard configuration |
Spindle face fixed tool | ER11*4 | 1/Set | Standard configuration |
Fixed tool on counter shaft end face | ER11*5 | 1/Set | Standard configuration |
Synchronous Rotation Guide Bushing | 1/Set | Standard configuration | |
Product Automatic Receiver | 1/Set | Standard configuration | |
High pressure pump | 1/Set | Optional | |
Oil Mist Separator | 1/Set | Optional | |
Chuck | TSUGAMI | 1/Set | Standard configuration |
Bushing | TSUGAMI | 1/Set | Standard configuration |
Remark | The distribution of driven tool holders can be selected according to product requirements |
