With stable C-shaped structure, standard high-speed motorized spindle, direct drive CNC turning-table and servo tool library, can achieve high-speed and high-precision processing of complex parts.
Table size : φ630mm
Max horizontal load allowed : 500kg
X/Y/Zaxis travel : 600*450*400mm
project | specification | unit | ||
Workbench | Table size | φ630 | mm | |
Maximum horizontal load allowed | 500 |
kg |
||
Maximum vertical load allowed | 300 | |||
T slot dimensions | 8 x 14 h8 | pcs x mm | ||
Processing range |
X axis | 600 | mm | |
Y | 450 | mm | ||
Z axis | 400 | mm | ||
B axis | – 35 ~ + 110 | ° | ||
C axis | 360 | ° | ||
The distance(spindle face to Table) | Maximum | 550 | mm | |
Minimum | 150 | mm | ||
Spindle |
Taper hole (7:24) | BT40 | ||
Rated speed | 1800 |
r/min |
||
Max speed | 12000 | |||
Output torque S1/S6 | 69/98 | N.m | ||
Spindle motor power S1/S6 | 13/18.5 | kW | ||
Cutting tool | Tool holder | BT40 | ||
Coordinate axis |
Fast moving |
X axis | 36 |
m/min |
Y axis | 36 | |||
Z axis | 36 | |||
Maximum rotation speed of turntable | B axis | 80 | rpm | |
C axis | 80 | rpm | ||
X/Y/Z axis motor power | 2.2/2.2/2.2 | kW | ||
B/C axis motor power | 13.3/3.7 | kW | ||
B axis | Rated torque | 2540 | N.m | |
C axis | Rated torque | 700 | N.m | |
Maximum feed speed |
X/Y/Z | 36 | m/min | |
B/C | 80 | rpm | ||
ATC |
ATC | Disc type | ||
Tool selection way | Choose the nearest tool in both directions | |||
Tools number | 24 | T |

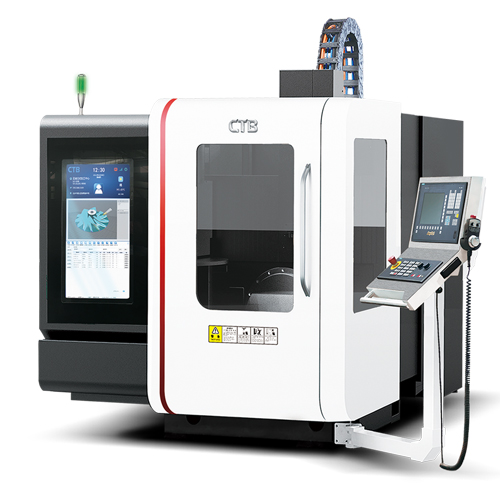

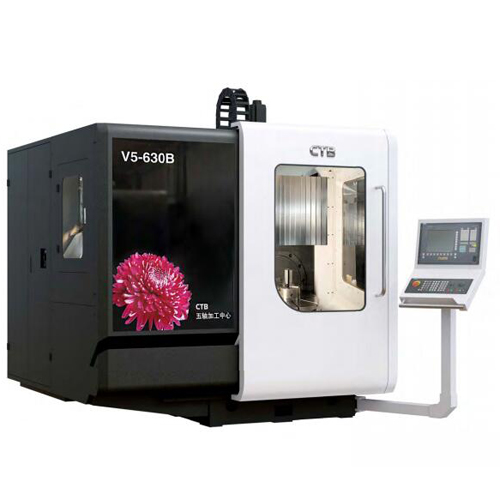

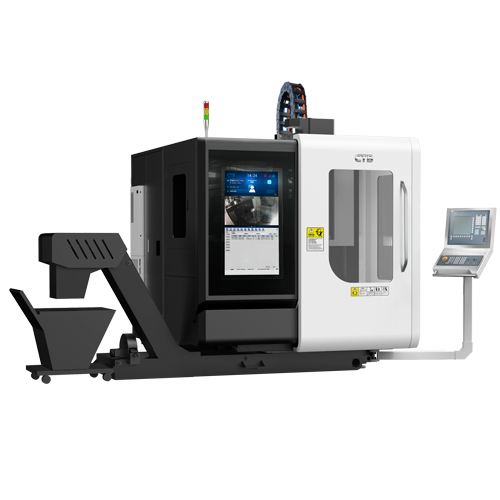

V5-630B five-axis machining center is a high-grade CNC machine tools, which is independently developed by CTB Co., LTD. It adopts stable C-type structure, motorized spindle, direct drive CNC rotary table and ATC, which can realize high-speed, high-precision and efficient processing of complex parts. It is widely used in flexible and efficient processing of automobile, electronics, gearbox, engine, mould, robot, medical instrument and other industries.

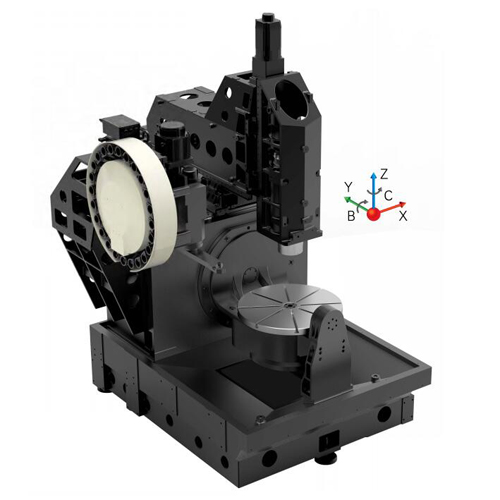

The V5-630B five-axis machining center adopts a stable C-type structure, the column is fixed on the machine bed, the slide plate moves horizontally along the column (X direction), the slide seat moves vertically along the slide plate (Y direction), and the spindle head-stock moves vertically along the slide seat (Z direction).The work table adopts direct drive single arm cradle structure with independent research and development, the performance has reached the international advanced level.
Features:

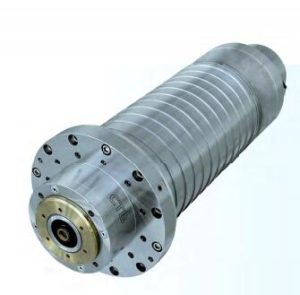

Self- development of BT40/HSK A63 motorized spindle, high precision, high power density, high dy-namic response, greatly improve processing efficiency and accuracy, reduce machine noise and vibration. | |

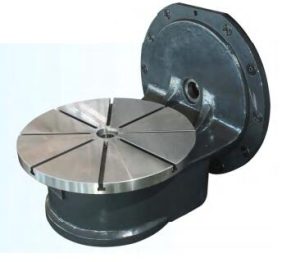

Self-developed BC dual-axis direct drive CNC turning-table, built-in motor withlarge torque, high precision, high dynamic response, greatly improve the performance and application of machine tools. | |

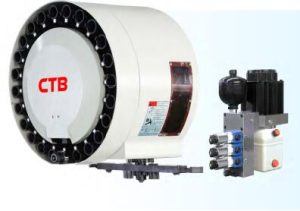

Hydraulic synchronous tool change technology realizes the coordinated control of servo tool library and servo hydraulic station.The tool switch time can reach 1.2s. | |

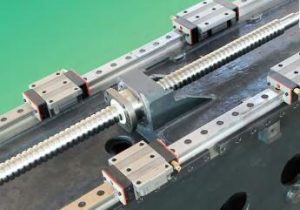

Equipped with precision high speed screw, roller guide, to ensure the rigidity and accuracy of machine tools. | |

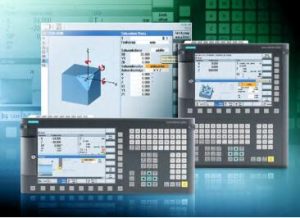

The powerful hardware architecture and intelligent control algorithm of SINUMERIK 840D sI, assisted by excellent driving and motor technology, enable the processing process to have very high dynamic performance and accuracy. |
Standard configuration
The basic configuration | 1. Main components (including machine bed, column, slide plate, slide seat, spindle head-stock) |
2.X, Y, Z three axis feeding system | |
3. Single arm cradle turntable BC630 | |
4. Motorized spindle BT40 | |
5. Electrical control system (including electrical cabinet, power module, servo module, PLC, operation panel, display, handheld unit, electric cabinet air conditioning, etc.) | |
6. Hydraulic system | |
7. Pneumatic system | |
8. Centralized lubrication system | |
9. Water chiller | |
10. Chip conveyor, water tank, chip collector | |
11. Grating ruler | |
12. Guide rail protection cover | |
13. Machine tool integral protective cover | |
14. RENISHAW RTS+RMP40+Axiset (Optional HEIDENHAIN TT160+TS460+KKHOPT) |
documentation | Machine technical | 1. Certificate of quality
2. Packing list 3. Machine tool backup data (USB disk) 4. 840D Alarm Diagnosis Manual (electronic version) 5. 840D Milling Operation Manual (electronic version) 6. 840D Programming Manual Basic part 1 (electronic version) |
