Compact designs that make them ideal for production floors with limited space.
Table Size:1200*600mm
X/Y/Z travel: 1100*600*600mm

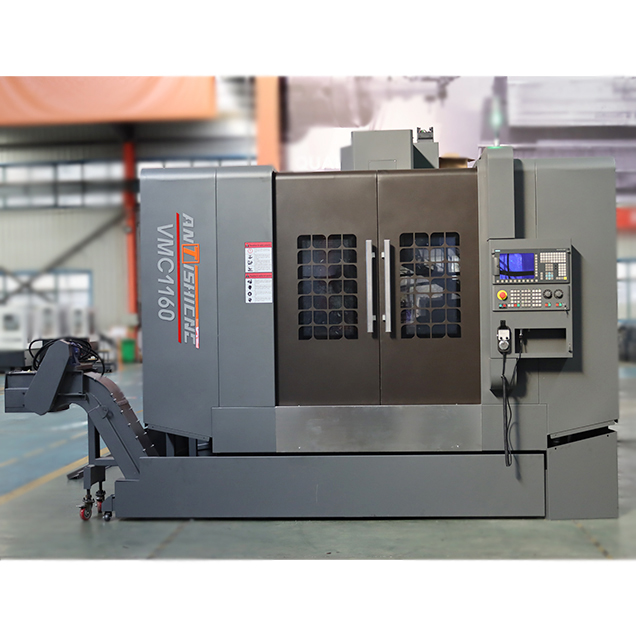

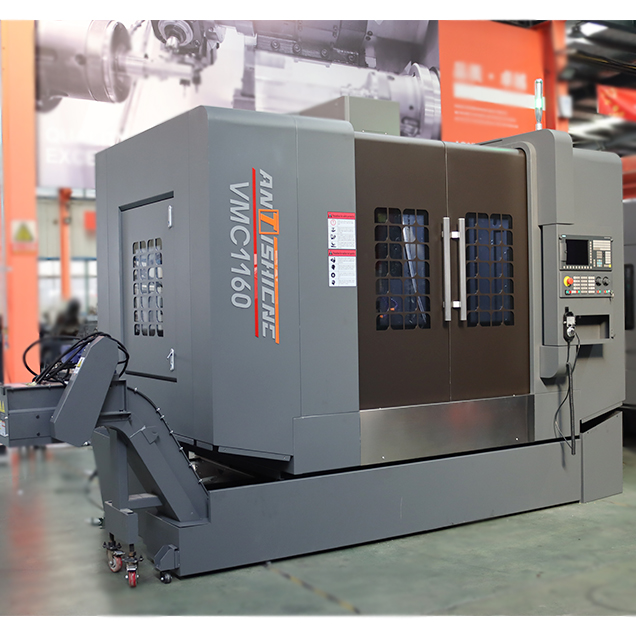

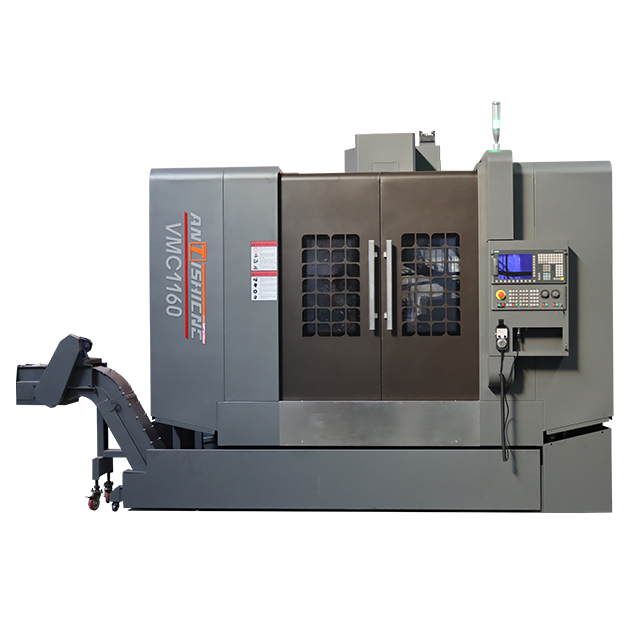

Specifications | Units | VMC1160 | |
Left and right travel (X) | mm | 1100 | |
Front and rear travel (Y) | mm | 600 | |
Up and down stroke (Z) | mm | 600 | |
Distance from spindle center to column guide rail | mm | 650 | |
Distance from spindle end face to worktable | mm | 120-720 | |
Workbench size (X*Y) | mm | 1200*600 | |
Maximum load of workbench | kg | 1000 | |
Workbench T-slot | mm | 5-18×100 | |
Spindle speed (belt type) | rpm | 8000(Optional :10000rpm) | |
Main motor power/30min power | KW | 11/15 | |
Spindle maximum output torque | N.m | 95 | |
Spindle bore taper | BT40 | ||
Spindle transmission mode | 8YU timing belt | ||
X\Y\Z axis servo motor torque | Nm | 25/25/32 | |
X\Y\Z axis servo motor power | KW | 4/4/5 | |
X\Y\Z direction motor connection method | Direct Connect | ||
X/Y/Z linear rail model | 45/45/45 | ||
X/Y/Z screw model | 4012
2 |
||
Tool magazine form | Disc type | ||
Knife selection method | Support Pre-select the knife and choose the knife nearby | ||
Tool magazine capacity | ATC | 24 | |
Maximum tool weight | kg | 8 | |
Maximum tool length | mm | 300 | |
Maximum tool diameter | mm | Max.diameter of tools that can be placed in the tool magazine without tools:φ160 | |
Max. diameter of the tool that can be placed in the tool magazine when there have knives:φ80 | |||
Tool changing time | s | 1.55 | |
Tool magazine
|
Tool holder model | MAS403, BT40 | |
Draw model | P40T-I | ||
X/Y/Z rapid movement speed | m/min | 30/30/24 | |
cutting feed rate | mm/min | 1-10000 | |
X/Y/Z positioning accuracy | mm | ±0.006/±0.006/±0.006 | |
X/Y/Z repeat positioning accuracy | mm | ±0.005/±0.005/±0.005 | |
Minimum setting unit | mm | 0.001 | |
power supply | KVA | 18 | |
Machine tool net weight | Kg | 6500 | |
Overall dimensions (L*W*H) | mm | 3100*2490*2430 |
Machine tool description: The feed axis of this machining center is controlled by X, Y, and Z coordinates, the spindle is driven by a servo motor, and the tool magazine capacity is 16-24. It can complete drilling, milling, boring, expanding, reaming, tapping and other complex parts such as various disks, plates, shells, cams, molds and other complex parts in one clamping. The three-axis linear rail structure Used in single-piece and batch production of various complex parts in various industries. The processing is programmed and the production cycle is shortened, so that users can obtain good economic benefits.

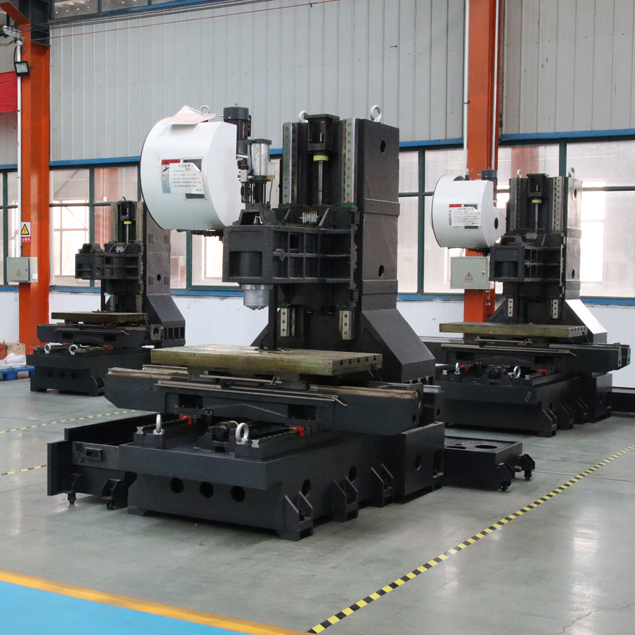

The VMC series vertical machining center adopts a vertical frame layout. The column is fixed on the bed. The spindle box moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the worktable moves laterally along the slide (X to) structure.
Large parts such as the bed, worktable, slide, column, spindle box, etc. are all made of resin sand castings, and have undergone two aging treatments to eliminate stress. They have good stability and high strength to ensure the stability of the machine tool’s long-term accuracy. It provides guarantee for the stability of machine tool performance. These large parts are optimized and designed using SolIdworks and Ansys. Reasonable structural strength and reinforcement are used to improve the stiffness and stability of the large parts and the entire machine, effectively suppressing the deformation and vibration of the machine tool caused by cutting forces.
The ball screws driven by the X, Y, and Z axes adopt C3-level double-nut preloaded ball screws provided by HIWIN, a professional supporting manufacturer in Taiwan. The bearings at both ends of the ball screws use imported P4-level 60º contact angle screw bearings. The screw support adopts a pre-stretched structure, which greatly reduces the impact of thermal deformation on accuracy during long-term operation of the machine tool.
The Z-axis servo motor has an automatic brake function. In the event of a power outage, the brake can automatically hold the motor shaft tightly so that it cannot rotate, which plays a role in safety protection.
STANDARD ACCESSORIES:
Back row chip full cover sheet metal belt chip remover, drawer type water tank and chip box, backward impact chip washing device, full-function operation panel and hand-wheel, ATC, belt drive spindle, sprinkler cooling system at the spindle side, air cooling system at the spindle side, heat exchange device of electric cabinet, working area cleaning water gun, air gun, working light and alarm light.
OPTIONAL ACCESSORIES:
1 | Chain type chip remover(VMC850S/850/1060) |
2 | Chain type chip remover(VMC1370/1260) |
3 | Chain type chip remover() |
4 | Chain type chip remover(VMC1380/1580) |
5 | Chain type chip remover(VMC1890) |
6 | BT40 direct connecting spindle (12000rpm)(VMC850S~) |
7 | Spindle central outlet function(VMC850S/850) |
8 | Spindle central outlet function(VMC1060~1890) |
9 | 4th rotary table φ250mm/320mm (FANUNC β) |
