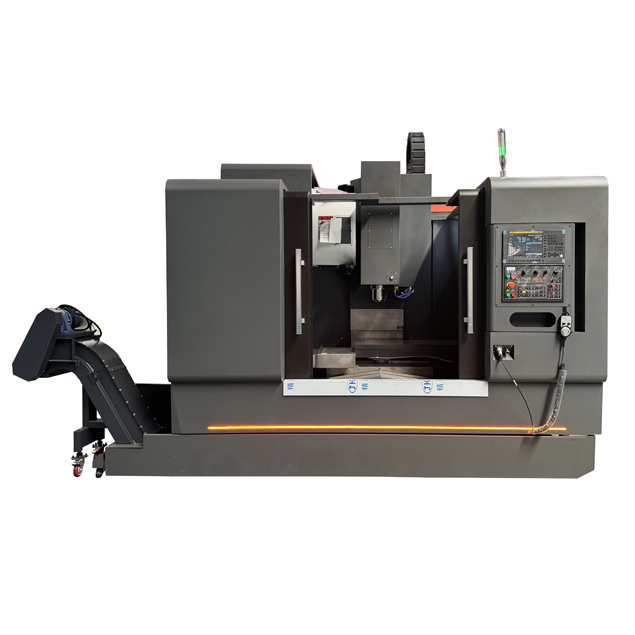

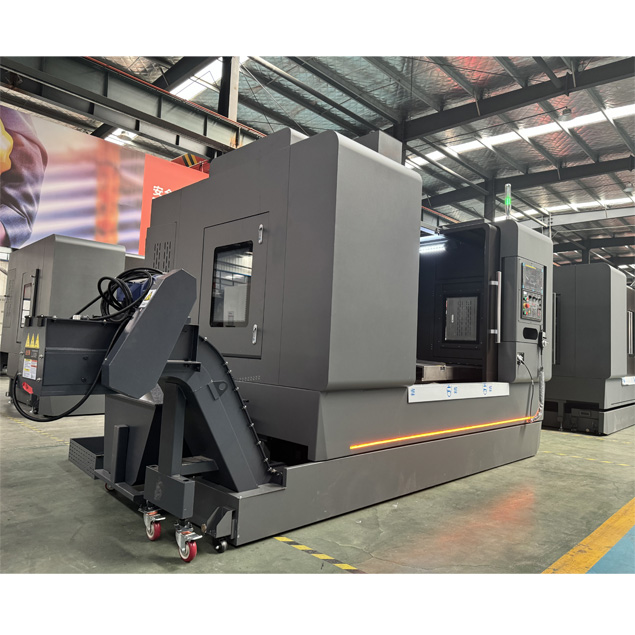

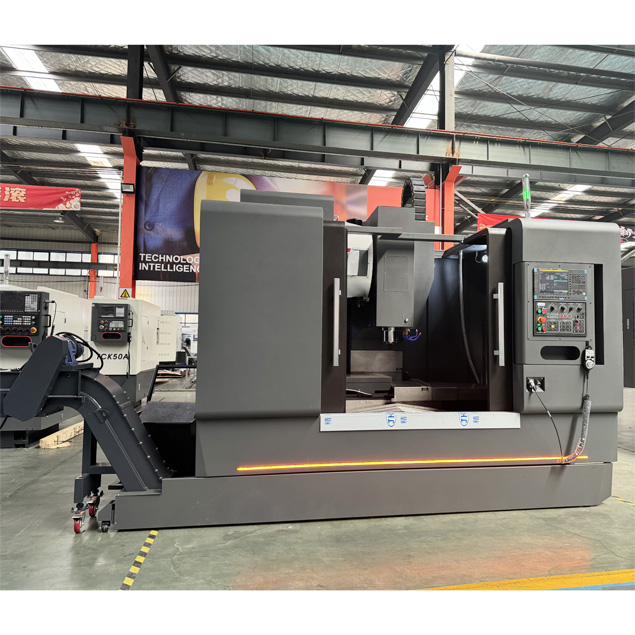

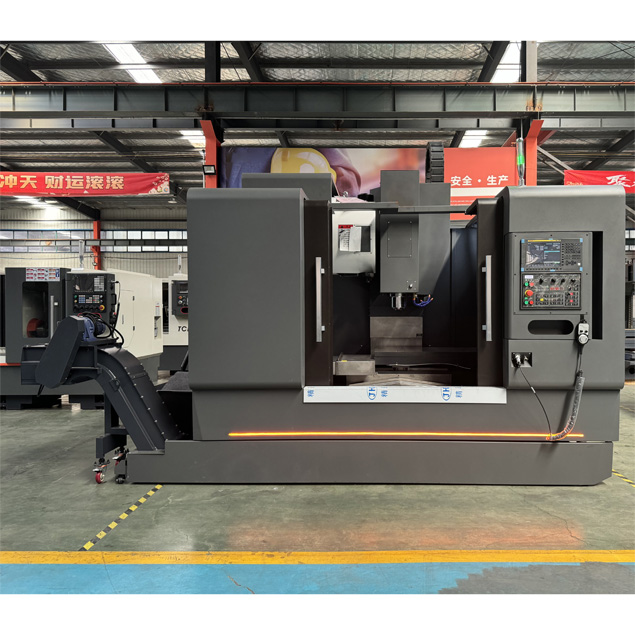

VMC1370 VMC Machine Center

Wide range of applications, including aerospace, automotive, medical, and general machining.

Table Size: 1500*700mm

Max Loading Weight: 1000kg

CONTACT US FOR MORE INFORMATION
Specifications Units VMC1370
Left and right travel (X) mm 1300
Front and rear travel (Y) mm 700
Up and down stroke (Z) mm 650
Distance from spindle center to column guide rail mm 752
Distance from spindle end face to worktable mm 150-800
Workbench size (X*Y) mm 1500*700
Maximum load of workbench kg 1000
Workbench T-slot mm 5-18*145
Spindle speed (belt type) rpm 6000
Main motor power/30min power KW 11
Spindle bore taper BT50
Spindle transmission mode Belt
X\Y\Z axis servo motor power KW 3.5/3.5/5
X\Y\Z direction motor connection method Direct Connect
X/Y/Z linear rail 45/2/6,45/2/4,45/2/6
Tool magazine form Disc type
Knife selection method Support Pre-select the knife and choose the knife nearby
Tool magazine capacity ATC 24
Maximum tool weight kg 18
Maximum tool length mm 350
Tool changing time s 3
Tool magazine



Tool holder model BT50
Draw model BT50 45°
X/Y/Z rapid movement speed m/min 24-24-20
cutting feed rate m/min 8
X/Y/Z positioning accuracy mm ±0.002/300
X/Y/Z repeat positioning accuracy mm ±0.005/±0.005/±0.005
Minimum setting unit mm 0.001
Machine tool net weight Kg 8500
Overall dimensions (L*W*H) mm 3600×3000×3200

Machine tool description: The feed axis of this machining center is controlled by X, Y, and Z coordinates, the spindle is driven by a servo motor, and the tool magazine capacity is 16-24. It can complete drilling, milling, boring, expanding, reaming, tapping and other complex parts such as various disks, plates, shells, cams, molds and other complex parts in one clamping. The three-axis linear rail structure Used in single-piece and batch production of various complex parts in various industries. The processing is programmed and the production cycle is shortened, so that users can obtain good economic benefits.

The VMC series vertical machining center adopts a vertical frame layout. The column is fixed on the bed. The spindle box moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the worktable moves laterally along the slide (X to) structure.

Large parts such as the bed, worktable, slide, column, spindle box, etc. are all made of resin sand castings, and have undergone two aging treatments to eliminate stress. They have good stability and high strength to ensure the stability of the machine tool’s long-term accuracy. It provides guarantee for the stability of machine tool performance. These large parts are optimized and designed using SolIdworks and Ansys. Reasonable structural strength and reinforcement are used to improve the stiffness and stability of the large parts and the entire machine, effectively suppressing the deformation and vibration of the machine tool caused by cutting forces.

The ball screws driven by the X, Y, and Z axes adopt C3-level double-nut preloaded ball screws provided by HIWIN, a professional supporting manufacturer in Taiwan. The bearings at both ends of the ball screws use imported P4-level 60º contact angle screw bearings. The screw support adopts a pre-stretched structure, which greatly reduces the impact of thermal deformation on accuracy during long-term operation of the machine tool.

The Z-axis servo motor has an automatic brake function. In the event of a power outage, the brake can automatically hold the motor shaft tightly so that it cannot rotate, which plays a role in safety protection.

STANDARD ACCESSORIES:
Back row chip full cover sheet metal belt chip remover, drawer type water tank and chip box, backward impact chip washing device, full-function operation panel and hand-wheel, ATC, belt drive spindle, sprinkler cooling system at the spindle side, air cooling system at the spindle side, heat exchange device of electric cabinet, working area cleaning water gun, air gun, working light and alarm light.

OPTIONAL ACCESSORIES:

1 Chain type chip remover(VMC850S/850/1060)
2 Chain type chip remover(VMC1370/1260)
3 Chain type chip remover()
4 Chain type chip remover(VMC1380/1580)
5 Chain type chip remover(VMC1890)
6 BT40 direct connecting spindle (12000rpm)(VMC850S~)
7 Spindle central outlet function(VMC850S/850)
8 Spindle central outlet function(VMC1060~1890)
9 4th rotary table φ250mm/320mm (FANUNC β)
