CNC lathes can produce high-quality surface finishes, reducing the need for additional processing steps and improving overall product quality.
Max. Swing over Bed : Φ600mm
Max. Swing over slide : Φ395mm
Max. turning length : 1350mm
| Name | Unit | Specifications | ||
| CK6160/1500 | ||||
| Max. Swing over Bed | mm | Φ600 | ||
| X-direction rail span | mm | 210 | ||
| Z-direction rail span | mm | 400 | ||
| Max. Swing over slide | mm | Φ395 | ||
| Top distance | mm | 1500 | ||
| Max. disc machining diameter | 600 | |||
| Max. turning length | mm | 1350 | ||
| Center High | From the bed | mm | 345 | |
| From the ground | mm | 1150 | ||
| Spindle through hole diameter | mm | Φ130 | ||
| Bar diameter | mm | Φ128 | ||
| Optional hollow chuck tie rod through hole | mm | Φ118 | ||
| Spindle end type | A2-11 | |||
| chuck | mm | Φ380 (130 holes) | ||
| Spindle taper taper | No | metric 90, 1:20 | ||
| Optional 8-inch hollow chuck draw tube inner diameter | mm | Φ65 | ||
| Spindle limit speed | rpm | 800 | ||
| Tail stock sleeve diameter | mm | φ75 | ||
| Tail stock sleeve inner hole taper | No | MT5# | ||
| Tail stock sleeve stroke | mm | 150 | ||
| Tail stock form | Ordinary hand crank (optional hydraulic tailstock) | |||
| Number of electric tool holders | Pcs | 4 (optional 6/8 station electric) | ||
| Knife square size | mm | 25×25 (four stations) | ||
| Screw model | X Axis | mm | FDC2506-P3 | |
| Z Axis | mm | FDC5010-P3 | ||
| X/Z rapid traverse speed | m/min | 6/8 | ||
| X travel | mm | 330 | ||
| Z travel | mm | 1500 | ||
| Minimum setting unit | mm | 0.001 | ||
| main motor power | KW | 7.5 (Optional 11kw) | ||
| total power | KW | 13（17） | ||
| Machine net weight | Kg | 3060 | ||
| Dimensions (L×W×H) | mm | 3150×1650×1820 | ||

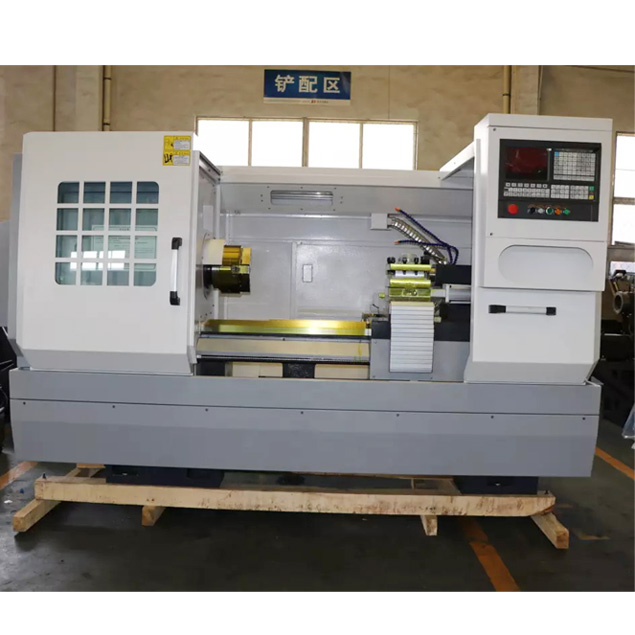

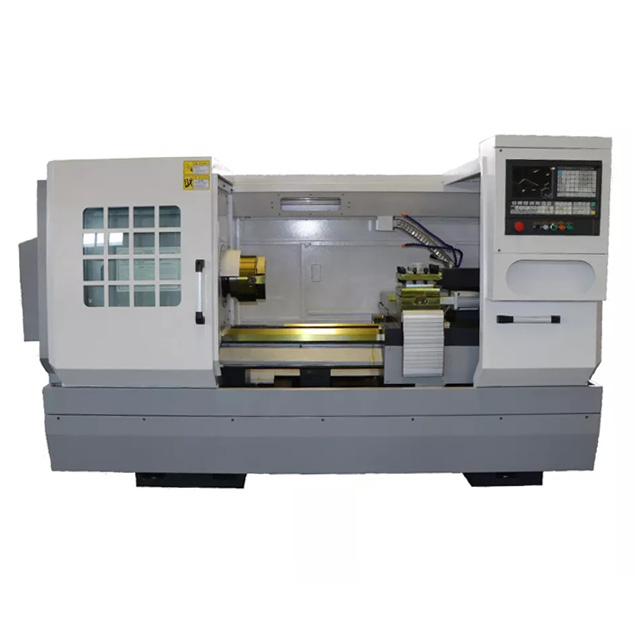

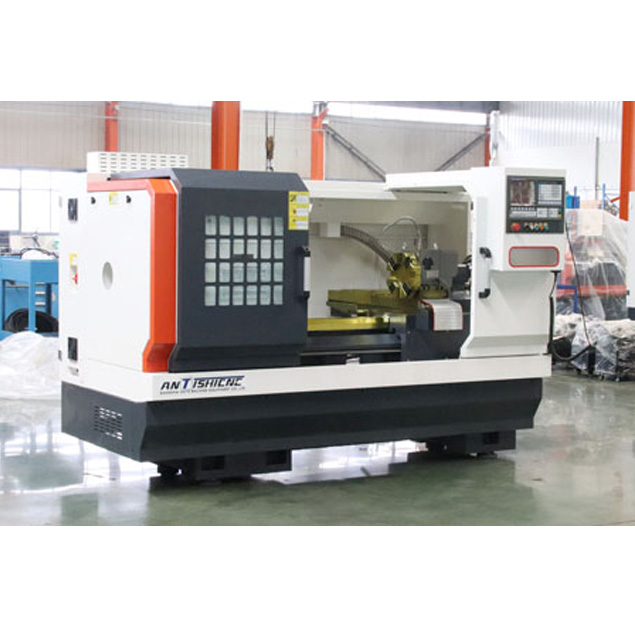

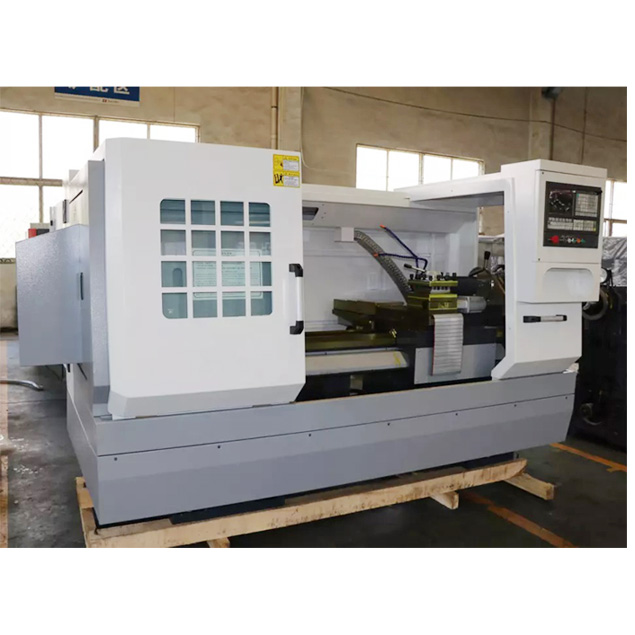

CK6160 machine tools is a mature product has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.This series machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Features
 |
Spindle
Adopt high-precision spindle bearing set and the spindle with precision assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity. |
|
 |
Tool holder
It adopts the working principle of worm gear transmission, meshing of upper and lower gear plates, and screw clamping. It has the advantages of fast indexing, high positioning accuracy and large tangential torque. The transmission and indexing of the letter adopts the Hall element, which has a long service life. |
|
 |
Chuck
Large clamping force, long service life, strong design, hard jaws can be interchanged with soft jaws, and jaws are adjustable. |
|
 |
Transmission
High efficiency, small temperature rise, high precision, high speed, high rigidity, reversibility, long life, low energy consumption, high synchronization, simple maintenance, strong operability for users |
|
 |
Tail stock
The hydraulic tail stock is processed by manual (or hydraulic) adjustment, manual locking, and manual (or hydraulic) jacking of the work piece. |
|
 |
Machine tool lubrication
Each lubricating point adopts a forced automatic lubricating device for fixed-point quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the oil quantity is insufficient, a warning signal is automatically generated. |
|
Note:
1. When installing the chuck or fixture, please pay attention to the limit speed of the selected chuck or fixture.
2. The CNC machine tool has strict requirements on the power supply. If the fluctuation of the user’s power grid exceeds ±10%, a voltage stabilizer must be added, otherwise the CNC machine tool will not work normally, and even unpredictable results will occur.
Standard Accessories:
| Name | Specifications | Quantity |
| Control System | GSK 980TC3 | 1 set |
| Spindle motor | 7.5 KW | 1 set |
| Spindle structure | Step-less | 1 set |
| Spindle bearing | NN3024K/234424/NN3022K | 1 set |
| Guide | high-frequency hardening | 1 set |
| Ball screw | 2506/4008（1 Meter） | 1 set |
| 2506/5010（1.5 Meter） | 1 set | |
| 2506/5010（2 Meter） | 1 set | |
| Screw bearing | Special bearing for ball screw | 1 set |
| Tool holder | 4-position electric tool | 1 set |
| Automatic lubricating device | RBCLB-2BZK | 1 set |
| Three-jaw manual chuck | K11200 | 1 set |
| Cooling pump | 150W/250W | 1 set |
Optional Accessories
| Name | Specifications | Quantity |
| Hydraulic station (optional) | 43L | 1 set |
| Hydraulic chuck (optional) | 15 inch | 1 set |
