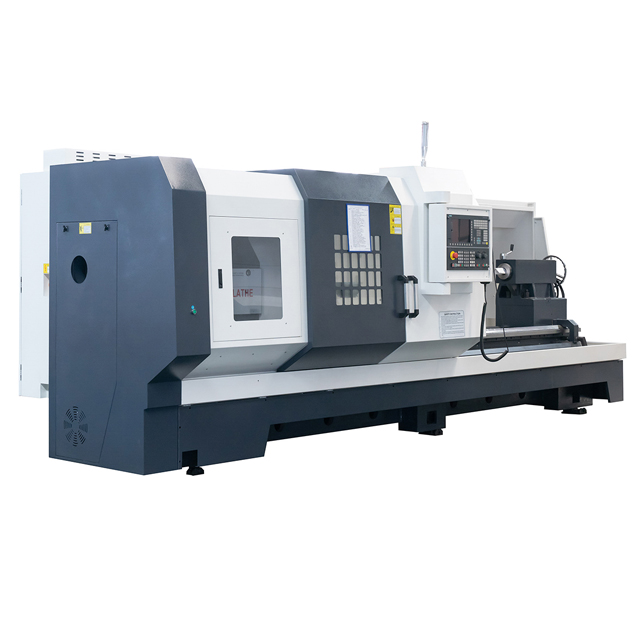

CNC lathes can be programmed to perform a wide range of operations, including turning, facing, and boring, making them versatile machines for various industries.

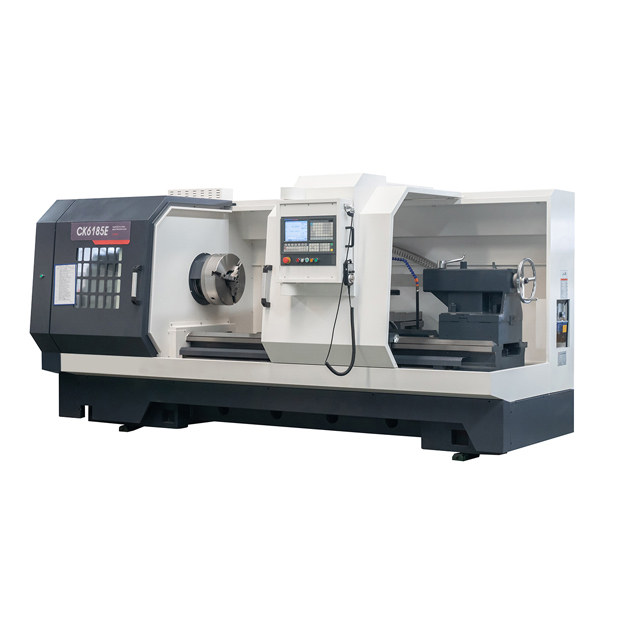

Max. Swing over Bed : Φ850mm
Swing over cross slide : Φ500mm
Max. turning length : 2950mm
| Item | UNIT | Specifications | ||||
| CK6185E/1000 | CK6185E/1500 | CK6185E/2000 | CK6185E/3000 | |||
| Max.swing diameter over bed | mm | φ850 | φ850 | φ850 | φ850 | |
| X axis travel | mm | 330 | 330 | 330 | 330 | |
| Z axis travel | mm | 600 | 600 | 600 | 600 | |
| Swing over cross slide | mm | φ500 | φ500 | φ500 | φ500 | |
| Distance between centers | mm | 1000 | 1500 | 2000 | 3000 | |
| Max working diameter(Disc) | mm | 850 | 850 | 850 | 850 | |
| Maximum turning length | mm | 950 | 1450 | 1950 | 2950 | |
| Center height | From the bed | mm | 425 | 425 | 425 | 425 |
| From the ground | mm | 1125 | 1125 | 1125 | 1125 | |
| Spindle bore | mm | φ105 | φ105 | φ105 | φ105 | |
| Bar capacity | mm | φ105 | φ105 | φ105 | φ105 | |
| Hollow chuck rod bore(Optional) | mm | φ88 | φ88 | φ88 | φ88 | |
| Spindle nose types | C11 | C11 | C11 | C11 | ||
| Chuck | mm | Manualφ400 | Manualφ400 | Manualφ400 | Manualφ400 | |
| Spindle bore taper | No | Metric120，
1：20 |
Metric120，
1：20 |
Metric 120，
1：20 |
Metric 120，
1：20 |
|
| Spindle max speed | rpm | Manual 3 steps（10 ~85，40 ~ 425，100~850） | Manual 3 steps（10 ~85，40 ~ 425，100~850） | Manual 3 steps
（10 ~85，40 ~ 425，100~850） |
Manual 3 steps（10 ~85，40 ~ 425，100~850） | |
| Tailstock quill diameter | mm | φ100 | φ100 | φ100 | φ100 | |
| Tailstock quill taper | No | MT6# | MT6# | MT6# | MT6# | |
| Tailstock quill travel | mm | 250 | 250 | 250 | 250 | |
| Tailstock types | Manual | Manual | Manual | Manual | ||
| Electric tool position | pc | 4 | 4 | 4 | 4 | |
| Tool size | mm | 32×32(4 position) | 32×32(4 position) | 32×32(4 position) | 32×32(4 position) | |
| Screw model | X axis | mm | GD4005-P3 | GD4005-P3 | GD4005-P3 | GD4005-P3 |
| Z axis | GD5010-P3 | GD5010-P3 | GD6310-P3 | GD6310-P3 | ||
| X/Z axis rapid traverse | m/min | 4/5 | 4/5 | 4/5 | 4/5 | |
| X axis travel | mm | 450 | 450 | 450 | 450 | |
| Z axis travel | mm | 1100 | 1600 | 2100 | 3100 | |
| Minimum setting unit | mm | 0.0001 | 0.0001 | 0.0001 | 0.0001 | |
| Main motor power | kw | 11(Frequency) | 11(Frequency) | 11(Frequency) | 11(Frequency) | |
| Total power supply | kw | 16 | 16 | 18 | 20 | |
| Machine weight | kg | 4100 | 4500 | 5100 | 5900 | |
| Overall dimension | mm | 3500×2000×2000 | 4000×2000×2000 | 4500×2000×2000 | 5500×2000×2000 | |
The CK6165E is a mature product mainly exported by the company. The whole machine has a compact structure, beautiful and pleasant appearance, high spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
The optimized design of the headboard is suitable for turning disc and shaft parts. It can process straight lines, arcs, metric and inch threads, and multi-head threads. It can be applied to turning disc and shaft parts with complex shapes and high accuracy processing requirements.
Both the machine tool guide rail and the sliding saddle guide rail are made of hard guide rail of special materials, which are hardened at high frequency, super hard and wear-resistant, durable, and have good machining accuracy retention.
Features
 |
Spindle
Adopt high-precision spindle bearing set and the spindle with precision assembly and dynamic balance test to ensure the spindle with high precision, low noise and strong rigidity. |
|
 |
Tool holder
It adopts the working principle of worm gear transmission, meshing of upper and lower gear plates, and screw clamping. It has the advantages of fast indexing, high positioning accuracy and large tangential torque. The transmission and indexing of the letter adopts the Hall element, which has a long service life. |
|
 |
Chuck
Large clamping force, long service life, strong design, hard jaws can be interchanged with soft jaws, and jaws are adjustable. |
|
 |
Transmission
High efficiency, small temperature rise, high precision, high speed, high rigidity, reversibility, long life, low energy consumption, high synchronization, simple maintenance, strong operability for users |
|
 |
Tail stock
The hydraulic tail stock is processed by manual (or hydraulic) adjustment, manual locking, and manual (or hydraulic) jacking of the work piece. |
|
 |
Machine tool lubrication
Each lubricating point adopts a forced automatic lubricating device for fixed-point quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the oil quantity is insufficient, a warning signal is automatically generated. |
|
| Item | Specification | No | Brand | Origin | |
| Control system | GSK 980TC3/988T | 1 set | GSK | China | |
| Spindle motor | 11 KW (Frequency) | 1 set | GSK | China | |
| Spindle structure | Precision assembly | 1 set | ANTS | China | |
| Spindle bearing | NN3032K/W33/P5；NN3028K/W33/P5
234432M/SP |
1 set | China | China | |
| Guide rail | Hard rail | 1 set | ANTS | China | |
| X-Axis ball screw | GD4005X818 | 1 set | NMC | China | |
| Z-Axis ball screw | 1/1.5Meters | GD5010X1974/2474 | 1 set | NMC | China |
| 2/3 Meters | GD6310X2974/4028 | ||||
| X-Axis Screw bearing | 7602025/DB/P5；6205 | 1 set | HBB | China | |
| Z-Axis Screw bearing | 1/1.5Meters | 7602040/DB/ P5；6207 | 1 set | HBB | China |
| 2Meters | 7602045/QBC/P5
7602040/DB/P5 |
1 set | |||
| 3Meters | 7602045/QBC/P5 | 2 set | |||
| Tool post | LD4B-CK650 | 1 set | WENCH | China | |
| Automatic lubrication device | RBCLB-3ZK | 1 set | HEJIN | China | |
| Three-jaw manual chuck | K11400 | 1 set | Universal | China | |
| Cooling pump | P=250W | 1 set | ZHERI | China | |
| T hydraulic station (optional) | 60L | 1 set | MONFR | China | |
| Hydraulic chuck (optional) | KT12-3/ KT15-3 | 1 set | BDEFU | China | |
