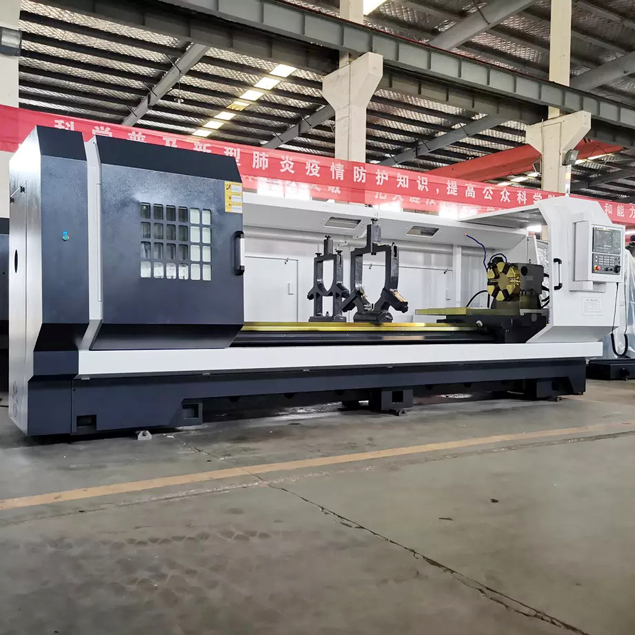

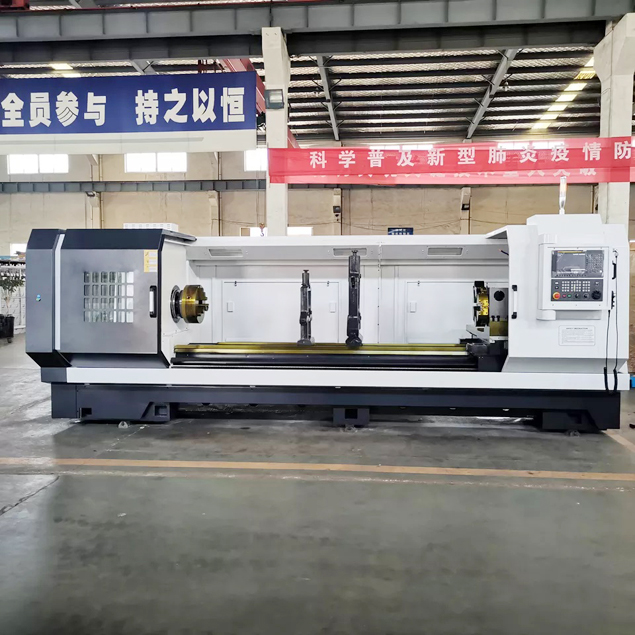

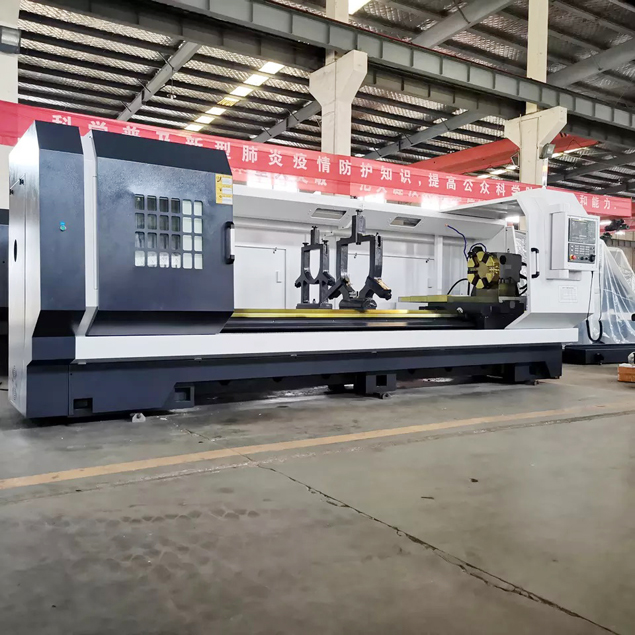

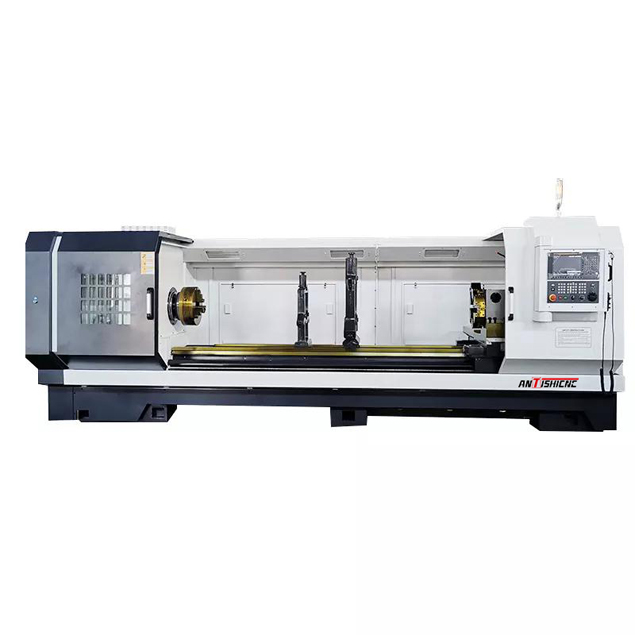

1.CK61125E is a mature product mainly exported by Shanghai ANTS Machine Equipment Co.,Ltd. The whole machine has compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.

2. The optimized design of the bedhead box is suitable for the turning of disc and shaft parts. It can perform the machining of straight line, circular arc, metric and imperial threads and multi-head threads, and can be applied to the machining of disc and shaft parts with complex shapes and high precision requirements.

3. The guide rails of the machine tool and the slide saddle guide rails are all made of hard guide rails made of special materials. After high-frequency quenching, they are super hard and wear-resistant, durable, and have good machining accuracy.

4. The numerical control system adopts Guangshu GSK988T system, and adopts domestic famous and high-quality ball screws and high-precision screw bearings.

5. The spindle with high-precision spindle bearing group and precision assembly and dynamic balance test ensures that the spindle has high precision, low noise and strong rigidity.

6. Each lubricating point adopts a forced automatic lubricating device to lubricate the lead screw and guide rail quantitatively at fixed points. When there is an abnormal state or the oil is insufficient, a warning signal is automatically generated.

7. The standard configuration adopts the domestic three-jaw self-centering manual chuck.

8. The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of iron filings.
