Processing various cast iron, cast steel and alloy non-ferrous metals, non-metallic materials and other workpieces. It can turn internal and external cylinders, planes, grooves, cones, arcs, etc.
Max turning diameter : φ500mm
Max turning height : 400mm
| Parameter | SAL516 | |
| Machine tool structure
|
Guide rail structure | Z hard, X-ray |
| Processing feed method | Liang Dong | |
| Processing capacity
|
Maximum rotation diameter | φ600mm |
| Maximum turning diameter | φ500mm | |
| Maximum turning height | 400mm | |
| Maximum boring height | 350mm | |
| journey
|
X-axis | 480mm |
| Z axis | 420mm | |
| Rapid traverse rate
|
X fast traverse rate | 6m/min |
| Z fast traverse rate | 6m/min | |
|
Spindle
|
Spindle speed | 80-350r/min |
| Spindle motor power | 5.5Kw/970rpm | |
| fore bearing | 32228 | |
| rear bearing | 33022 | |
| · Spindle diameter | φ140mm | |
| Mainshaft internal warp | φ70mm | |
| Factory accuracy
|
positioning accuracy | ±0.01mm |
| Minimum positioning unit | 0.001mm | |
|
Chuck and turret
|
Special tooling for motor barrel | 80-132 |
| Flower plate (optional) | φ600mm | |
| Station | 2 | |
| Control System | Standard system | HNC-808xp |
| Xservo motor | 7.7NM/2000RPM | |
| Z servo motor (brake) | 7NM/2000RPM | |
| main motor power | 5.5KW/970RPM | |
| Transmission interface | USB | |
| Cutting cooling and chip removal system
(optional) |
cooling motor | 120W |
| Pump water output | 50L/min | |
| Cutting fluid tank capacity | 50L | |
| Chip conveyor | ||
| Electricity demand | power supply | 380V |
| Power consumption | 10KW | |
| The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
| environment humidity | ＜85% | |
| Hydraulic power station | 1.5KW/50Hz-50L | |
| Other parameters of the equipment | Equipment weight | 3.3 TON |
| Packing size (length x width x height) | 1400X1430X2300 | |

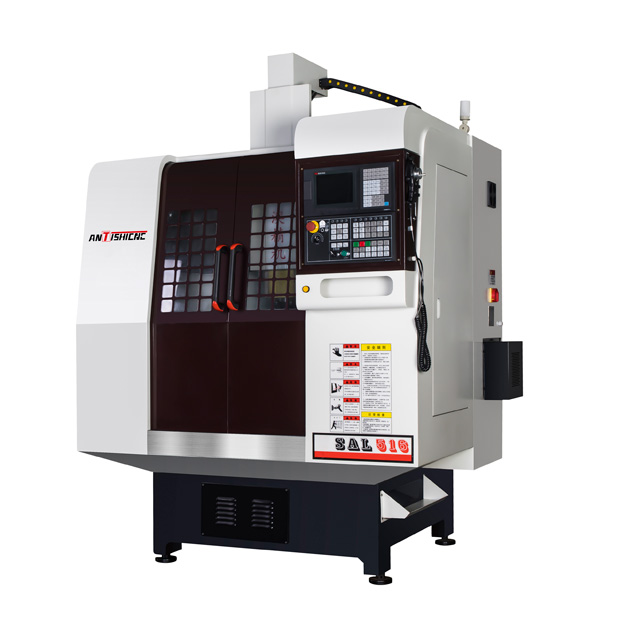

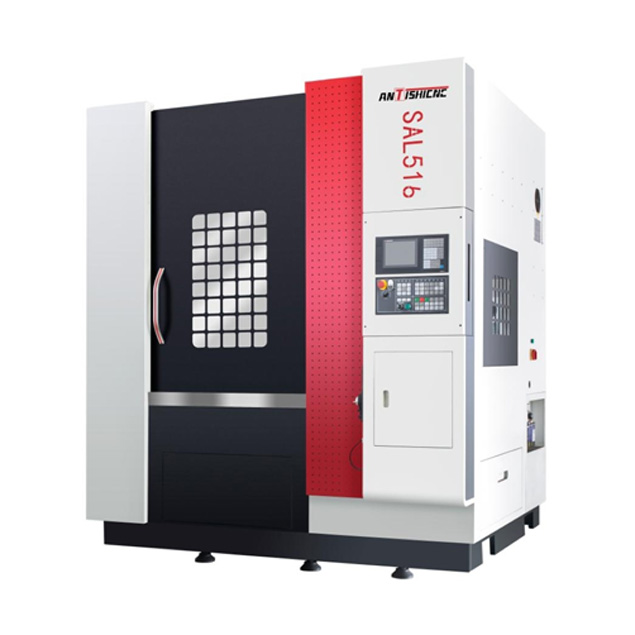

SAL516 CNC vertical lathe is suitable for processing various cast iron, cast steel and alloy non-ferrous metals, non-metallic materials and other workpieces. It can turn internal and external cylinders, planes, grooves, cones, arcs, etc. It can meet different batch production requirements, with high efficiency and stable and reliable accuracy. For processing (80-132) national standard and non-standard electric motor casings, a special hydraulic tooling fixture is designed. It greatly improves the processing efficiency and reduces the labor intensity of workers. And it can realize the machining of the upper and lower planes of the motor casing, the seam, and the iron core in one cut (divided into rough and fine turning). The later assembly accuracy and noise of the motor have been greatly improved.
| Machine tools and configuration | |||
| NO | Name | Specification | Quantity |
| 1 | Motor | SAL516 | 1 SET |
| 2 | CNC system | 1 SET | |
| 3 | server Driver | CHINA | 2 SETS |
| 4 | X, Z servo motor | CHINA | 2 SETS |
| 5 | X-direction roller linear guide | HIWIN RGW35HC | 1 SET |
| 6 | Servo main motor | MK | 1 SET |
| 7 | Spindle bearings | CHINA | 1 SET |
| 8 | Lead screw | CHINA | 1 SET |
| 9 | Main motor servo inverter | CHINA | 1 SET |
| 10 | Special tooling for motor barrel | 80-132 | 1 SET |
| 11 | Rotary cylinder | CHINA | 1 SET |
| 12 | air switch | CHINA | 1 SET |
| 13 | Intermediate relay | CHINA | 1 SET |
| 14 | switching power supply | Taiwan-CHINA | 1 SET |
| 15 | hydraulic station | CHINA | 1 SET |
| 16 | Chip conveyor (optional) | CHINA | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
