Special hydraulic fixtures are designed. It greatly improves processing efficiency and reduces the labor intensity of workers.
Max turning diameter : Φ800mm
Max turning height : 550mm
| Parameter | SAL516 | |
| Machine tool structure
|
Guide rail structure | Z hard, X-ray |
| Processing feed method | Liang Dong | |
| Processing capacity
|
Maximum rotation diameter | Φ800mm |
| Maximum turning diameter | Φ800mm | |
| Maximum turning height | 550mm | |
| Maximum boring height | 550mm | |
| journey
|
X-axis | 930mm(-260mm\+440mm) |
| Z axis | 650mm | |
| Rapid traverse rate
|
X fast traverse rate | 16m/min |
| Z fast traverse rate | 8m/min | |
| Spindle
|
Spindle speed | 80-200rpm |
| Spindle type | A2-11 | |
| Radial runout of spindle | 0.008mm | |
| Factory accuracy
|
positioning accuracy | (X)±0.009mm (Z) ±0.010mm |
| positioning accuracy | (X) ±0.004mm
(Z) ±0.005mm |
|
| Minimum positioning unit | 0.001mm | |
| Chuck and turret
|
Special tooling for motor barrel | 160-250 |
| Flower plate (optional) | Φ800mm | |
| Station | 2 | |
| Special boring bar | ||
| Control System | Xservo motor | 18NM/2000RPM |
| Z servo motor (brake) | 18NM/2000RPM | |
| three-phase asynchronous motor | 7.5KW / 490RPM | |
| Transmission interface | USB | |
| Electricity demand | power supply | 380V |
| Power consumption | 20KW | |
| The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
| environment humidity | ＜85% | |
| Hydraulic power station | 1.5KW/50Hz-50L | |
| Other parameters of the equipment | Equipment weight | 5 TON |
| Packing size (length x width x height) | 2240X1865X3750 | |

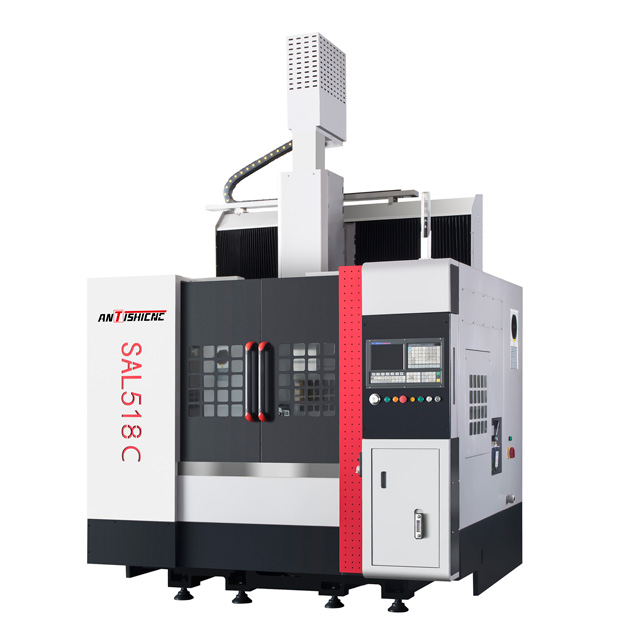

SAL518 CNC vertical lathe is suitable for processing various cast iron, cast steel and alloy non-ferrous metals, non-metallic materials and other workpieces. It can turn internal and external cylinders, planes, grooves, cones, arcs, etc. It can meet different batch production requirements, with high efficiency and stable and reliable accuracy. For processing (80-132) national standard and non-standard electric motor casings, a special hydraulic tooling fixture is designed. It greatly improves the processing efficiency and reduces the labor intensity of workers. And it can realize the machining of the upper and lower planes of the motor casing, the seam, and the iron core in one cut (divided into rough and fine turning). The later assembly accuracy and noise of the motor have been greatly improved.
| Machine tools and configuration | |||
| NO | Name | Specification | Quantity |
| 1 | Host | SAL518ZJ | 1 SET |
| 2 | CNC system | 1 SET | |
| 3 | servo Driver | CHINA | 2 SETS |
| 4 | X, Z servo motor | CHINA | 2 SETS |
| 5 | X-direction roller linear guide | RGW45HC-2-R-1150-ZB-H-II | 1 SET |
| 6 | Servo main motor | MK | 1 SET |
| 7 | 3-phase asynchronous main motor | 7.5KW/490RPM | 1 SET |
| 8 | Spindle bearings | CHINA | 1 SET |
| 9 | Lead screw | CHINA | 1 SET |
| 10 | Main motor servo inverter | CHINA | 1 SET |
| 11 | Special tooling for motor barrel | 80-132 | 1 SET |
| 12 | Rotary cylinder | CHINA | 1 SET |
| 13 | air switch | CHINA | 1 SET |
| 14 | Intermediate relay | CHINA | 1 SET |
| 15 | switching power supply | Taiwan-CHINA | 1 SET |
| 16 | hydraulic station | CHINA | 1 SET |
| 17 | Semi-enclosed shield | CHINA | 1 SET |
| 18 | transducer | · Yeong Wook Jo | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
