Automatic loading and unloading is adopted to achieve integrated processing, reducing unnecessary time waste.
Max turning diameter : Φ600mm
Max turning height : 400mm
| Parameter | SAL6045DZ | |
| Machine tool structure | Guide rail structure | linear guide |
| Processing feed method | Fixed beam | |
| Processing capacity
|
Maximum turning diameter | Φ600mm |
| Maximum turning height | 400mm | |
| Maximum turning diameter | Φ600mm | |
| Maximum boring height | 200mm | |
| Journey
|
X1、X2 axis | 1020mm、450mm |
| Z1、Z2 axis | 450mm、450mm | |
| Rapid traverse rate | X fast traverse rate | 20m/min |
| Z fast traverse rate | 20m/min | |
| Spindle
|
Inverted spindle structure
|
Synchronous motorized spindle unit |
| Inverted spindle speed
|
50-1500r/min | |
| Upright spindle structure
|
Mechanical spindle unit | |
| Upright spindle bearing model
|
NN3026K、130BTR10S、NN3020K | |
| Spindle inner diameter | φ71mm | |
| Tool turret | Servo power tower | SHD20B-330 |
| Station | 12 | |
| Tool size | BMT55/ER25 | |
| Tool speed | 5000rpm | |
| Factory accuracy
|
Repeatability | ±0.003mm |
| positioning accuracy | ±0.005mm | |
| Minimum positioning unit | 0.001mm | |
|
Control System
|
Inverted synchronous spindle unit | 15KW/500rpm |
| Servo main motor | 15KW/500RPM | |
| X1, X2 servo motor | 18Nm/1500RPM | |
| Z1, Z2 servo motor (brake) | 18Nm/1500RPM | |
| Displayer | CHINESE | |
| Transmission interface | USB | |
| Cutting cooling and chip removal system
|
Cooling motor | 120W |
| Pump water output | 50L/min | |
| Cutting fluid tank capacity | 70L | |
| Chip conveyor | ||
| Electricity demand | power supply | 380V |
| Power consumption | ||
| The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
| environment humidity | ＜85% | |
|
Other parameters of the equipment |
Hydraulic power station | 1.5KW/50Hz-50L |
| Equipment weight | 9 TON | |
| Packing size (length x width x height) | 2965X2564X3300 | |

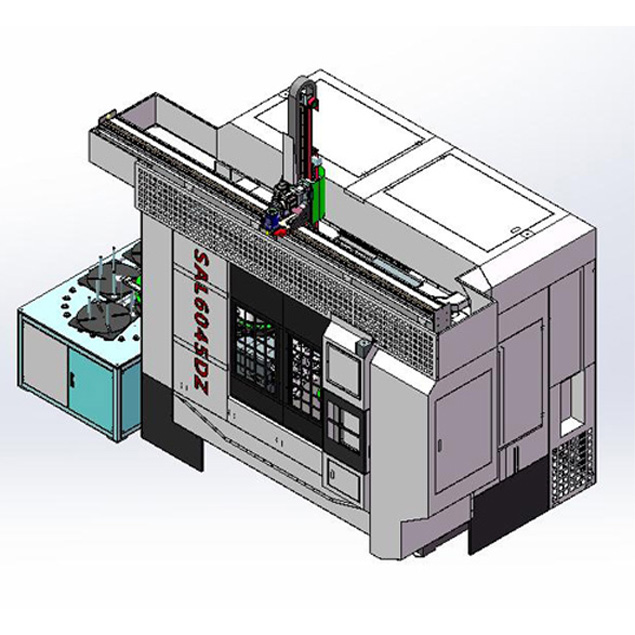

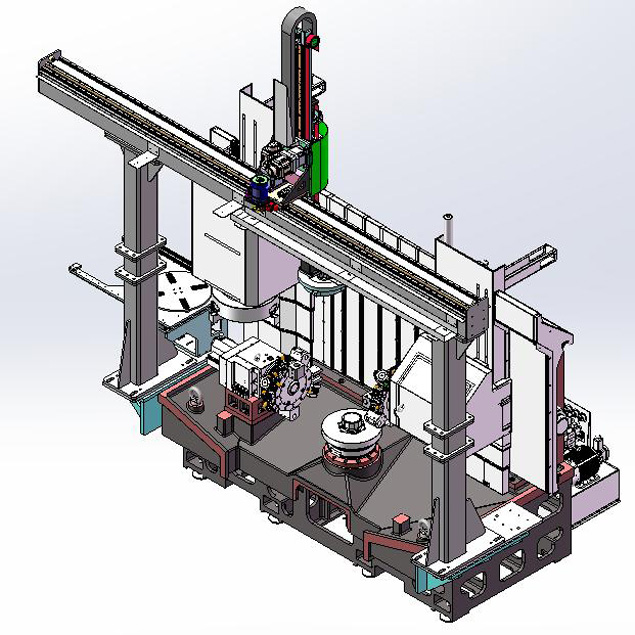

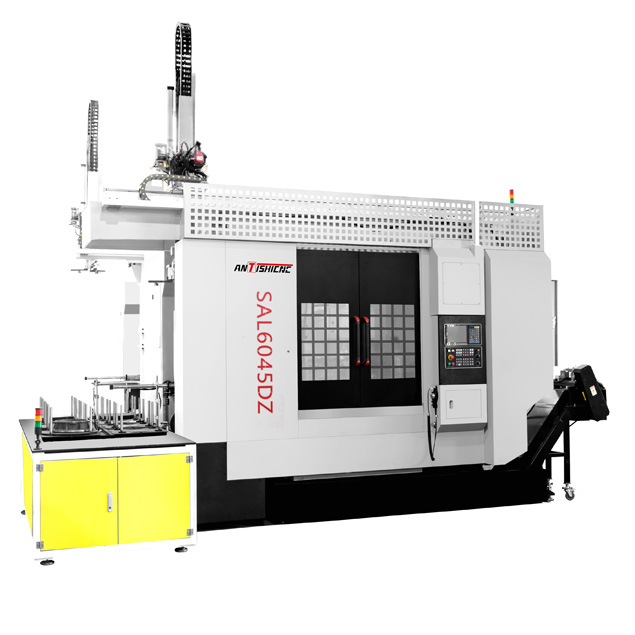

The SAL6045DZ reverse vertical machine uses positive and negative independent processing units and adopts automation. Loading and unloading, processing two sides of the two ordinal parts, one equipment is completed, to achieve integrated processing, no intermediate transition flow, reduce unnecessary waste of time, greatly improve the processing efficiency and reduce the labor intensity of workers. And can realize the upper and lower plane, the end of a knife processing (dividing rough and fine turning). The electrical components in the electrical cabinet are made of Schneider brand, and the special cooling air conditioner is used to cool and dehumidify the electrical cabinet, so that the machine tool has a safe, stable and reliable power control system.
| Machine tools and configuration | |||
| NO | Name | Specification | Quantity |
| 1 | Host | SAL6045DZ | 1 SET |
| 2 | CNC system | HNC-808D | 1 SET |
| 3 | Servo driver | CHINA | 4 SETS |
| 4 | X, Z servo motor | CHINA | 4 SETS |
| 5 | Servo power tower power drive | CHINA | 2 SETS |
| 6 | Servo power tower power motor | CHINA | 2 SETS |
| 7 | Synchronous servo main motor | CTB | 1 SET |
| 8 | Servo power tool turret | CHINA | 2 SETS |
| 9 | Spindle bearings | NTN | 1 SET |
| 10 | Lead screw | CHINA | 4 SETS |
| 11 | Main motor servo inverter | HNC | 2 SETS |
| 12 | Linear grating ruler | CHINA | 4 SETS |
| 13 | Circular grating ruler | CHINA | 1 SET |
| 14 | Rotary cylinder | CHINA | 1 SET |
| 15 | Air switch | Schneider | 1 SET |
| 16 | Intermediate relay | Schneider | 1 SET |
| 17 | Switching power supply | Schneider | 1 SET |
| 18 | Hydraulic station | CHINA | 1 SET |
| 19 | Chip conveyor | CHINA | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
