The machine tool adopts a fully enclosed protective cover to prevent dust from corroding machine tool parts.
Max turning diameter : Φ600mm
Max turning height : 550mm
Parameter | SAL5565 | |
Processing capacity
|
Maximum rotation diameter | Φ700mm |
Maximum turning diameter | Φ600mm | |
Maximum turning height | 550mm | |
Maximum turning diameter | Φ255mm | |
journey
|
X-axis | 610mm |
Z axis | 650mm | |
Rapid traverse rate
|
X fast traverse rate | 12m/min |
Z fast traverse rate | 12m/min | |
Spindle
|
Spindle speed | 100-500r/min |
Spindle motor power | 22Kw | |
Spindle head type | A2-11 | |
Spindle bearing | NTN P5 | |
Fore bearing | NN3032SKM.SP | |
Rear bearing | NN3026SKM.SP | |
Spindle outer diameter | Φ160mm | |
Spindle inner diameter | Φ80mm | |
Factory accuracy
|
Repeatability | ±0.005mm |
positioning accuracy | ±0.008mm | |
Minimum positioning unit | 0.001mm | |
Chuck and turret
|
Three jaw medium solid hydraulic chuck | 21 inch |
Cutter tower center height | 125mm | |
Station | 12 | |
Cutter head opposite side distance | 480mm | |
Control System | X servo motor | 27NM/2000RPM |
Z servo motor | 27NM/2000RPM | |
main motor power | 22KW/1000RPM | |
Transmission interface | USB | |
Displayer | China | |
Cutting cooling and chip removal system | cooling motor | 120W |
Pump water output | 50L/min | |
Cutting fluid tank capacity | 300L | |
Chip conveyor | ||
Electricity demand | power supply | 380V |
Power consumption | 35KW | |
The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
environment humidity | <85% | |
Other parameters of the equipment |
Hydraulic power station | 2.2KW/50Hz-50L |
Equipment weight | 8.5 TON | |
Packing size (length x width x height) | 2280X1815X3120 |

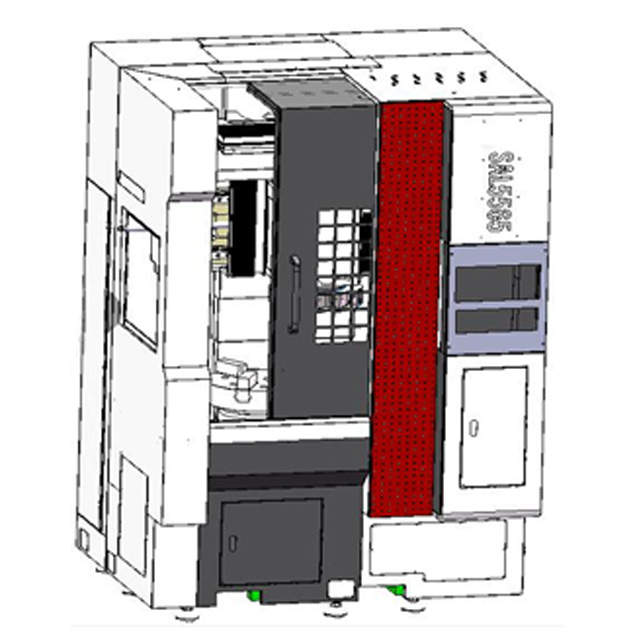

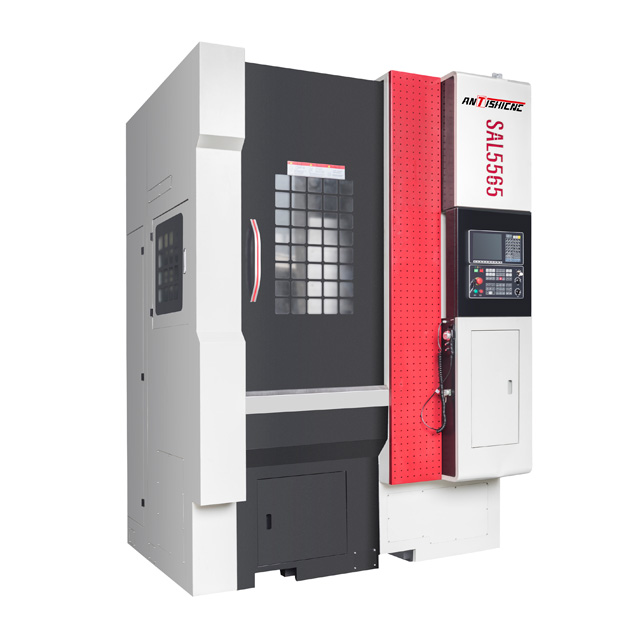

SAL5565 vertical lathe is a high speed, high efficiency, high rigidity processing equipment, coarse and fine integration, process intensive processing. The machine adopts fully closed protective cover to prevent dust corrosion of machine parts, mainly imported, some parts of well-known domestic enterprises, enhance the stability of the machine tool and extend the service life of the machine tool, the whole machine shape is stable and generous, mainly for automotive brake drum, wheel hub, motor shell and valve and other product needs.
Features:
Fixture: hydraulic chuck (special for vertical lathe), with waterproof and dust-proof function.
Drive: The use of high-end precision ball screw to drive, fast moving speed of 12m/min, with good progress and dynamic characteristics, thus greatly improving the processing efficiency.
Cutter tower: Cutter tower adopts servo power cutter tower, servo motor high speed indexing, precision positioning of tooth disk, hydraulic locking structure. It has the characteristics of fast speed, high positioning accuracy and strong reliability.
Machine tools and configuration | |||
NO | Name | Specification | Quantity |
1 | Host | SAL5565 | 1 SET |
2 | CNC system | 1 SET | |
3 | Servo driver | CHINA | 2 SETS |
4 | X, Z servo motor | CHINA | 2 SETS |
5 | Servo main motor | CHINA | 1 SET |
6 | Spindle units | CHINA | 1 SET |
7 | Linear guide | HIWIN | 1 SET |
8 | Spindle bearings | NTN | 1 SET |
9 | Lead screw | HIWIN | 1 SET |
10 | Main motor servo inverter | CHINA | 1 SET |
11 | Twelve station tool turret | CHINA | 1 SET |
12 | Hydraulic chuck | CHINA | 1 SET |
13 | Rotary cylinder | CHINA | 1 SET |
14 | Air switch | Schneider | 1 SET |
15 | Intermediate relay | Schneider | 1 SET |
16 | Switching power supply | Taiwan-CHINA | 1 SET |
17 | Fully enclosed protective cover | CHINA | 1 SET |
18 | Chip conveyor | CHINA | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
