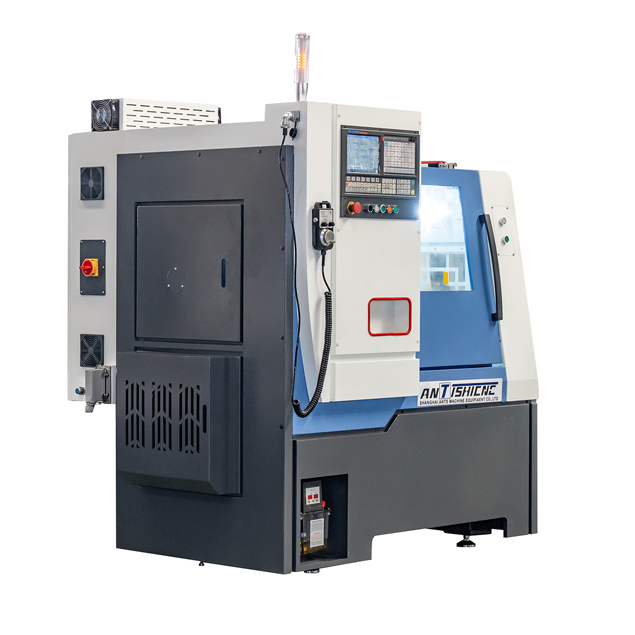

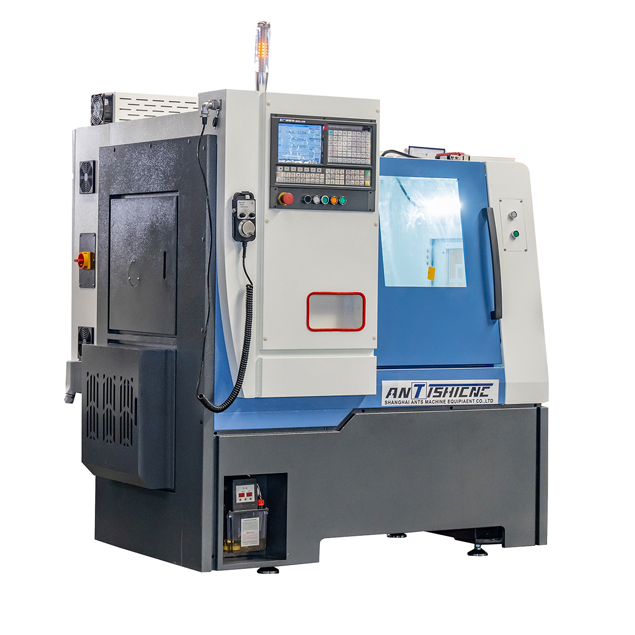

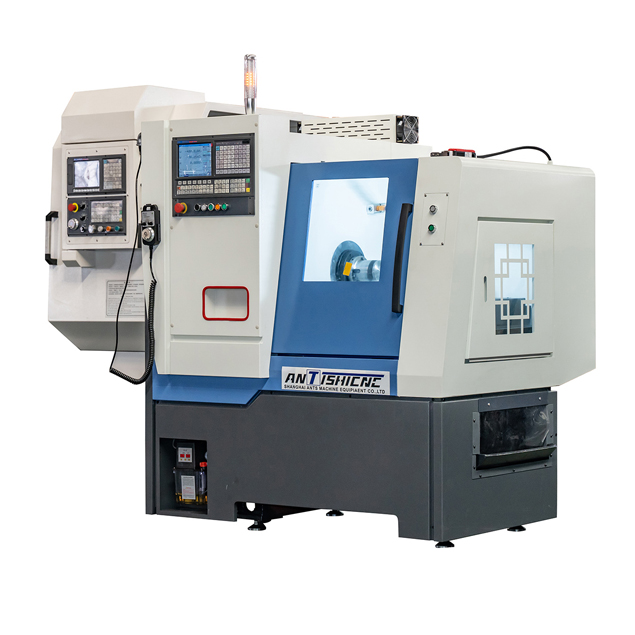

The flat bed design allows for machining of a wide range of workpieces, from small to large, and from simple to complex geometries, making it an ideal solution for various industries.
Max. Swing over Bed : Φ320mm
Max. Swing over slide : Φ70mm
Max. turning length : 280mm
Specifications | Unit | H32i |
Max. Swing over Bed | mm | Φ320 |
Max. Swing over slide | mm | Φ70 |
Max. disc machining diameter | mm | Φ320 |
Max. turning length (with row cutter) | mm | 280 |
Spindle end type | A2-5 | |
Spindle through hole diameter | mm | Φ48 |
Bar diameter | mm | Φ40 |
Hydraulic chuck | mm | HC640 |
Hydraulic chuck pull rod through hole | mm | Φ40 |
Rail form | Line rail | |
Spindle taper | No | 40° |
Spindle limit speed | rpm | 3500 |
Knife square size | mm | 20×20 |
Screw type X direction | mm | 2510 |
Screw type Z direction | mm | 3210 |
Rail type X direction | mm | 25 |
Z direction | mm | 30 |
X/Z motor torque | N.M | 4 |
Rapid traverse speed in X/Z direction | m/min | 24 |
X-direction travel | mm | 280 |
Z-direction travel | mm | 330 |
Min. setting unit | mm | 0.001 |
Main motor power | KW | 3.7 |
Total mains power | KW | 6 |
Machine net weight | KG | 1500 |
Dimensions (L×W×H) | mm | 1580X1250X1770 |
Note:
1. When installing fixtures, please pay attention to the limit speed of the selected fixtures.
2. CNC machine tools have strict requirements on power supply. If the fluctuation of the user’s power grid exceeds ±10%, a voltage stabilizer must be added, otherwise the CNC machine tool will not work normally, and even unpredictable results will occur.

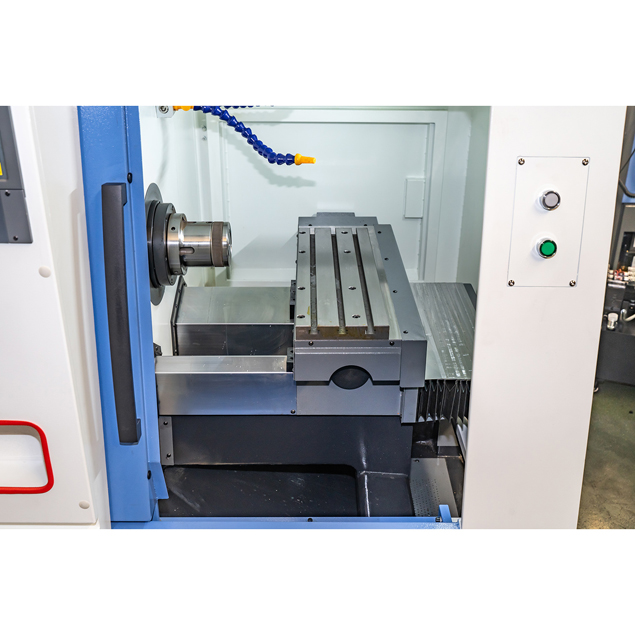

This machine tool is a flat bed machine tool with high speed, high precision and high reliability. The main components such as the bed base, the bed, and the bedside box are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
The machine tool adopts a flat bed structure and is equipped with high-precision preload Taiwan linear rolling guides. The servo motor is directly connected to the lead screw through a large-torque low-inertia elastic coupling. Compensate the influence of thermal deformation on the accuracy of the machine tool during long-term operation to ensure positioning accuracy and repeat positioning accuracy; the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
High-speed, high-precision, high-rigidity shell-type spindle unit and servo spindle motor can achieve higher spindle speed. The spindle unit is assembled in a constant temperature room. After assembly, it has been run-in at a constant temperature for 72 hours, and then it has been tested for 72 hours after being installed on the machine to ensure the reliability of high-speed and high-precision performance.
The tool arrangement method is adopted, the tool change speed is fast, and the positioning accuracy is high.
The machine tool protection adopts a full protection design, which is pleasant, unique in appearance, reliable in waterproof and chip prevention, and convenient in maintenance.
Features
![]() |

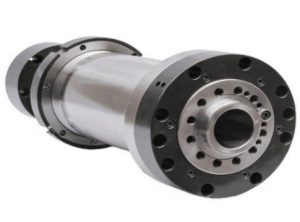

Spindle Description: The high-precision spindle bearing group is adopted and has been precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle. |
![]() |
Collet description: The size of the rear pull chuck series is designed according to the standard, and is suitable for drilling, reaming, tapping, milling, grinding, etc. of various CNC lathes. |
![]() ![]()
|

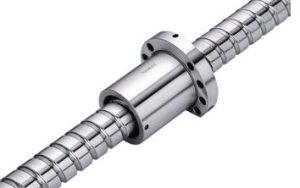

Transmission description: Screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high precision and stability.
The linear guide rail adopts 4-row roller type 45° contact angle and high rigid section design, which has the characteristics of strong load carrying capacity, small friction, good rigidity, low noise, and good lubrication effect. |
![]() |
Machine lubrication instructions: Each lubrication point adopts a forced automatic lubrication device for fixed-point quantitative lubrication of the screw and guide rail. When there is an abnormal state or insufficient oil, a warning signal is automatically generated, and the work is stable and reliable. |
Name | Specifications | Quantity | Brand |
Control System | 980TC3 | 1 | GSK |
Spindle Motor | ZJY182A-3.7BL-B35Y1 | 1 | GSK |
Spindle | SQ140 | 1 | China |
Automatic Lubricating Device | RBCLB-2BK | 1 | China |
Cooling Pump | 90W | 1 | China |
Hydraulic Station | / | 1 | China |
Hydraulic Chuck | HC640 | 1 | China |
