The CNC lathe's ability to control cutting forces and speeds ensures a high-quality surface finish, reducing the need for additional processing steps and improving overall product quality.
Max turning diameter : Φ360mm
Max workpiece length : 220mm
Max swivel diameter : φ110mm
Specifications | Unit | H36 |
Maximum turning diameter on the bed | mm | φ360 |
Maximum machining workpiece length | mm | 220 (chuck) |
Maximum swivel diameter on the carriage | mm | φ110 |
Orifice taper at front end of spindle | Non-standard MT5# | |
Spindle diameter | mm | φ48 |
Spindle speed | rpm | 2000 |
Draw tube through hole | mm | φ40 |
main motor power | Kw | 3.7KW servo main motor |
X-axis rapid traverse speed | m/min | 15 (servo) |
Z-axis rapid traverse speed | m/min | 15 (servo) |
Z-axis motor | Nm | 4Nm GSK servo motor |
X-axis motor | Nm | 4Nm GSK servo motor |
X-axis minimum setting unit | mm | 0.001 |
Z axis minimum setting unit | mm | 0.001 |
X-axis travel | mm | 340 |
Z-axis travel | mm | 250 |
Rail form | Taiwan track | |
Tool holder form | Tool holder | |
Machine weight | Kg | 1500 |
Machine tool dimensions (length × width × height) | mm | 2000×1400×1580 |

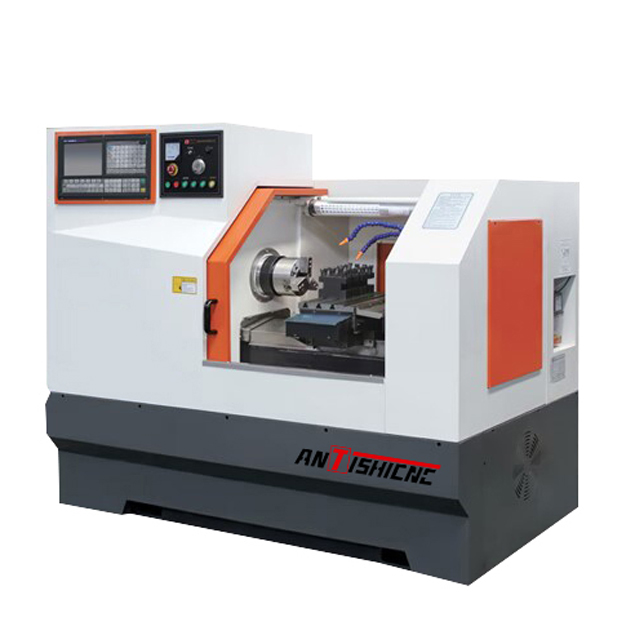

This machine tool is mainly used to process various shaft and disc parts, and can turn various threads, arcs, cones and inner and outer surfaces of rotary bodies, and can meet the speed requirements of high-speed chipping of ferrous and non-ferrous metals. It is suitable for high-efficiency, large-scale and high-precision processing of rotating parts in automobile, motorcycle, electronics, aerospace, military and other industries.
Features
1.The machine tool adopts mechatronics design, beautiful appearance, reasonable structure, low noise and high positioning accuracy. It has a wide range of uses and is easy to operate. It can automatically complete the thread processing of internal and external circles, grooving, end faces, spherical surfaces and various male and English cylinders and cones for turning various parts.
2.CNC system programming adopts ISO international code, manual input by keyboard, and is equipped with RS232 communication interface, with power-off protection and various self-diagnosis functions.
3.The spindle system has good rigidity. The spindle is variable frequency step-less speed regulation. The main shaft has a large bore diameter and a complete range of optional accessories. It is suitable for complex parts of various shapes, long shafts and disc parts, etc.
4.The spindle system has good rigidity. The spindle is variable frequency stepless speed regulation. The main shaft has a large bore diameter and a complete range of optional accessories. It is suitable for complex parts of various shapes, long shafts and disc parts, etc.
5.The vertical and horizontal tool travel of the machine tool is driven by a servo motor and driven by a precision ball screw.
6.The structural rigidity and transmission rigidity of the machine tool are higher than those of ordinary lathes, and the power utilization rate is high, which is suitable for high-precision and high-speed cutting.
7.The tool holder adopts the row tool holder, which is convenient for cutting and does not need to change the tool.
8.The operation of the machine tool is flexible and concentrated, and the pleasantness is good.
Standard Equipment:
1. Resin sand casting
2. Assembled spindle
3. Taiwan linear slide
4. Spring chuck + beater ring pneumatic clamping
5. Equipped with Guangzhou CNC 980TC3 system
6. X, Z direction servo motor adopts GSK CNC feed servo motor
7. Equipped with 3.7Kw servo main motor
8. Plum type coupling
9. Stainless steel guide rail protection
10. Domestic electric lubrication system (including automatic lubrication pump)
11. Each machine tool is equipped with 4 rows of tool holders
Optional Equipment:
1.Spindle unit
2.Hydraulic chuck
