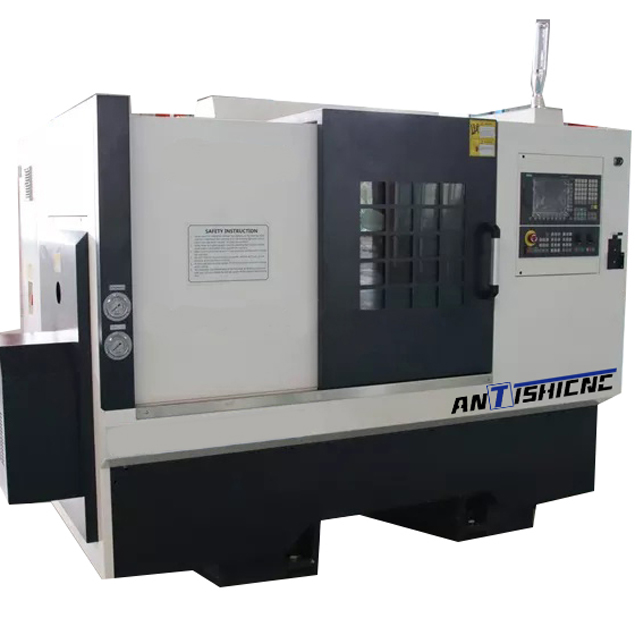

Machine tool description: This machine tool is a high-speed, high-precision, high-reliability inclined-bed machine tool. The main components such as the bed base, bed body, and headstock are all cast with high-strength materials to ensure the long-term stability of the machine tool.

The machine tool adopts a 45° overall inclined bed structure, and is equipped with high-precision preloaded Taiwan linear rolling guides. The servo motor is directly connected to the lead screw through a high-torque low-inertia elastic coupling. The lead screw support adopts a pre-stretching structure, which can eliminate transmission Backlash and pre-compensation for the influence of thermal deformation on the accuracy of the machine tool during long-term operation to ensure positioning accuracy and repeat positioning accuracy; the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

Using high-speed, high-precision and high-rigidity cartridge-type spindle unit and servo spindle motor, it can achieve higher spindle speed. The spindle unit is assembled in a constant temperature room. After assembling, it runs at constant temperature for 72 hours, and then goes on the machine for 72 hours of continuous trial operation to ensure the reliability of high-speed and high-precision performance.

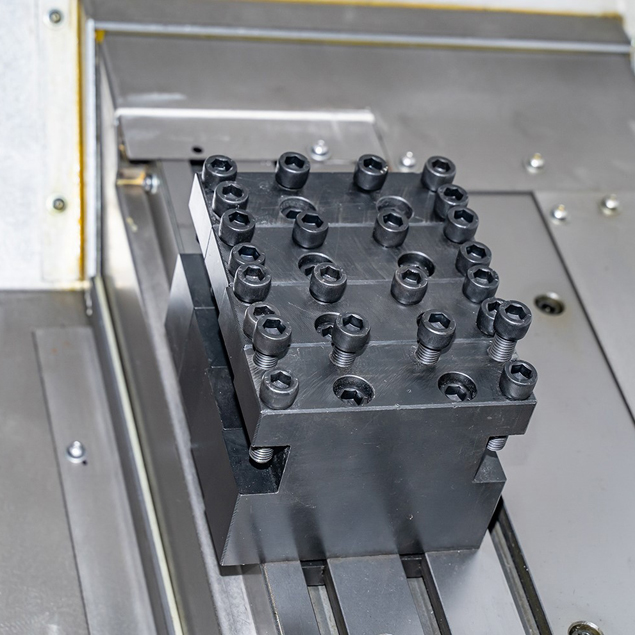

The arranging method is adopted, the tool changing speed is fast, and the positioning accuracy is high.

Machine tool protection adopts full protection design, which is pleasant, unique in appearance, reliable in waterproof and chip prevention, and easy to maintain.
