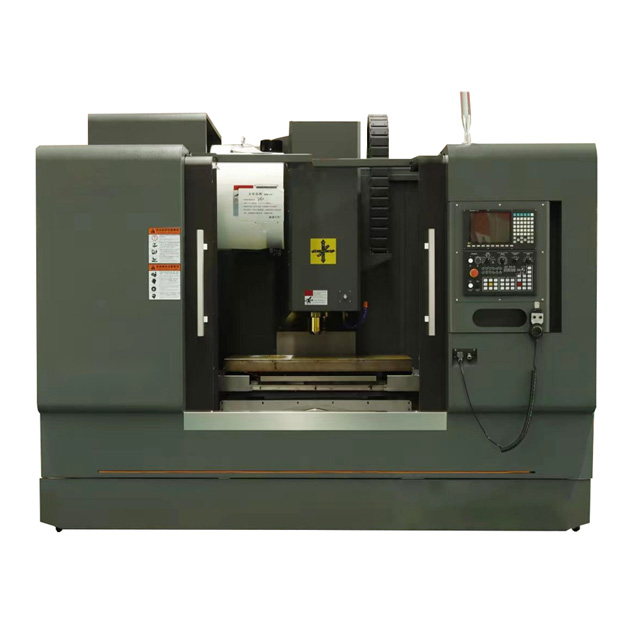

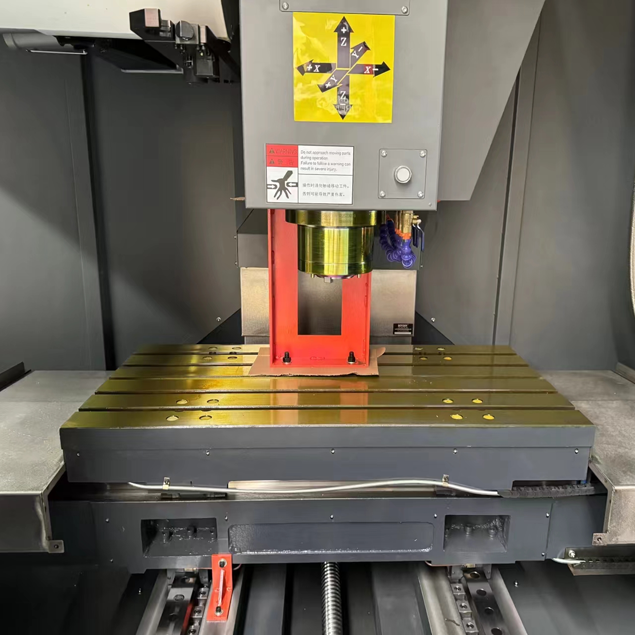

Large worktable capacities, allowing for machining of large and heavy workpieces.
Table Size: 1700*800mm
X/Y/Z travel: 1500*800*700mm

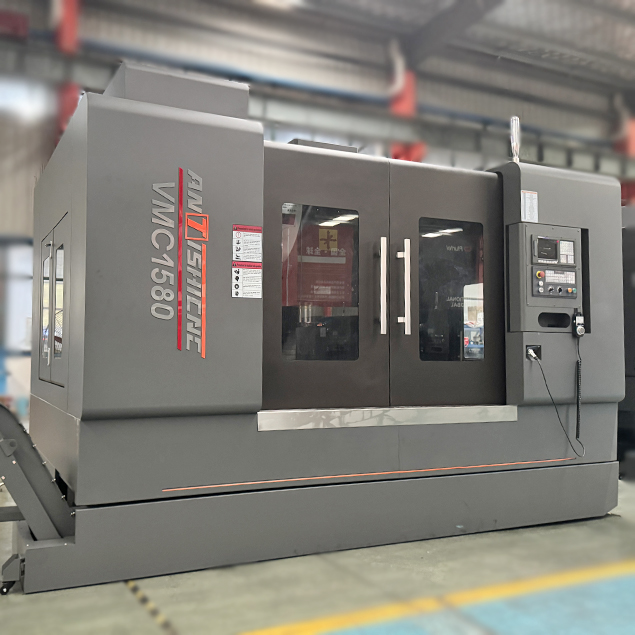

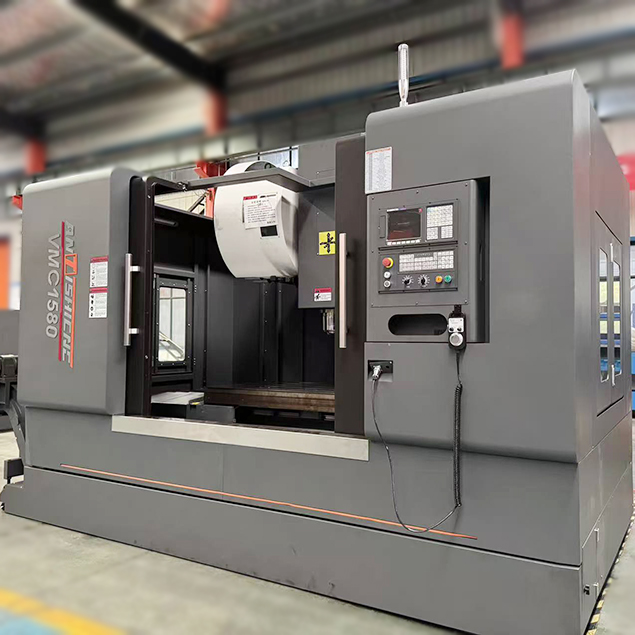

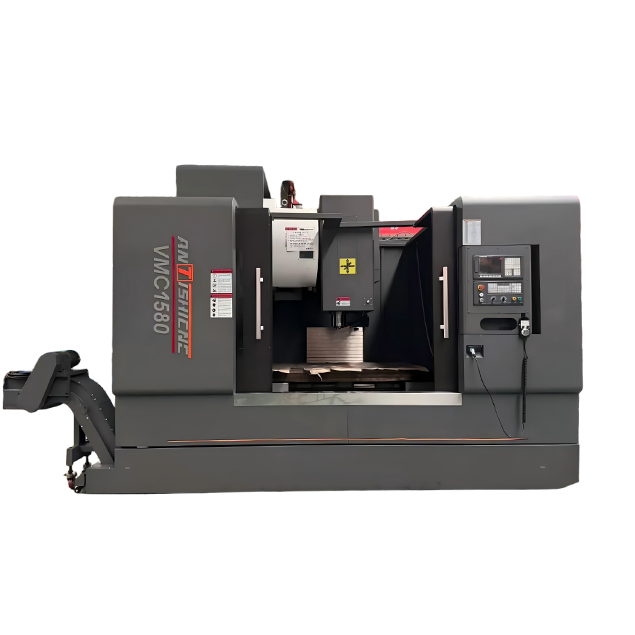

Specifications | VMC1580 |
Worktable size (mm) | 1700*800 |
Left and right stroke (X) (mm) | 1500 |
Front and rear travel (Y) (mm) | 800 |
Up and down stroke (Z) (mm) | 700 |
Distance from spindle center to column guide rail (mm) | 810 |
Distance from spindle end face to work table (mm) | 170-870 |
Workbench T-slot | 5-22*145 |
Spindle tool holder | BT50 |
Spindle speed (rpm) | 8000 |
Spindle motor power (Kw) | 15/18.5 |
X.Y.Z axis servo motor (Kw) | 4/7.5/4 |
X.Y.Z motor connection method | Direct |
X, Y, Z axis guide rail method | Slide rail |
Maximum load of workbench (kg) | 1500 |
Tool magazine capacity | 24 |
Tool changing speed (sec) | 1. 8 (Tools to Tool) |
Knife selection method | Choose from the nearest area |
Maximum tool weight (Kg) | 8 |
Maximum tool length (mm) | 350 |
Maximum tool diameter (mm) | Adjacentφ80
Not adjacent φ125 |
XYZ rapid traverse speed (m/min) | 15/15/15 |
Cutting feed speed (m/min) | 10 |
XYZ repeat positioning accuracy (mm) | ±0.004 |
Machine appearance (L*W*H) | 4260×3545×3200 |
Total machine weight (T) | 12 |
Note: CNC machine tools have strict power requirements. If the user’s power grid fluctuates by more than ±10%, a voltage regulator must be added, otherwise the CNC machine tool will not work properly, or even produce unpredictable results.
The whole machine has good rigidity and is easy and flexible to operate. It can perform end milling, drilling, enlarging, boring, tapping and other processing processes. It has a wide range of uses and is especially suitable for processing various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is more suitable for batch processing of parts in enterprise production workshops. It is suitable for processing small and medium-sized boxes, covers, plates, shells, disks and other parts in industries such as high-precision molds, automobiles, motorcycles, aviation, aerospace, instrumentation, light industry and textile, electronic instruments and machinery manufacturing.

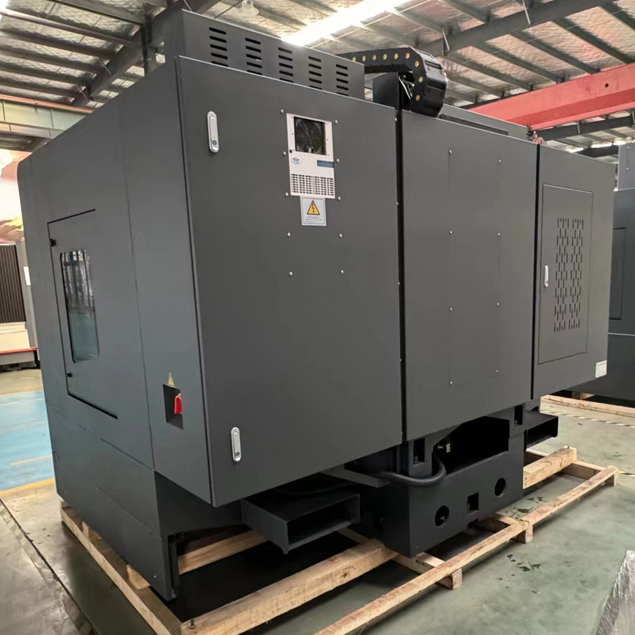

The machine tool base, column, spindle box, workbench and other basic parts are all made of high-strength lost foam casting technology. The internal metallographic structure is stable, ensuring the high stability of the basic parts. The casting structure has undergone machine tool dynamics analysis and finite element analysis to make its geometric structure more reasonable, and the appropriate matching with the reinforcing ribs ensures the high rigidity of the basic parts. The wide and solid machine tool base and fully load-supported design ensure heavy load capacity during processing.

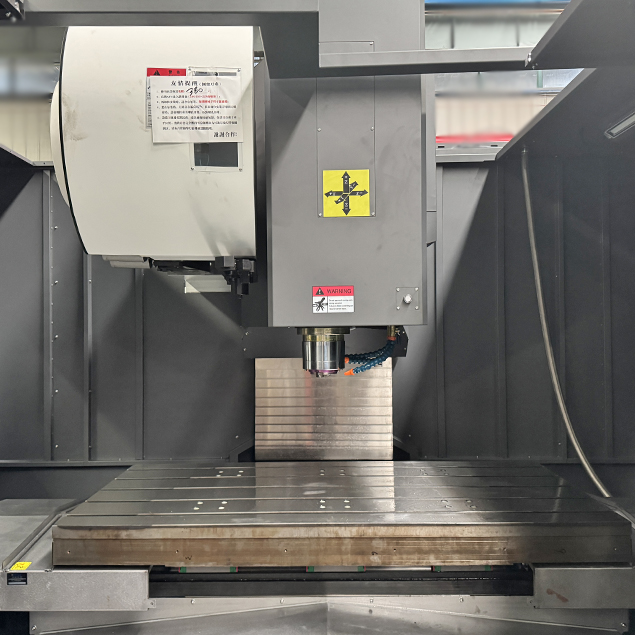

High-speed and high-rigidity spindle unit combined with servo spindle motor; X/Y/Z uses high-torque servo motor.

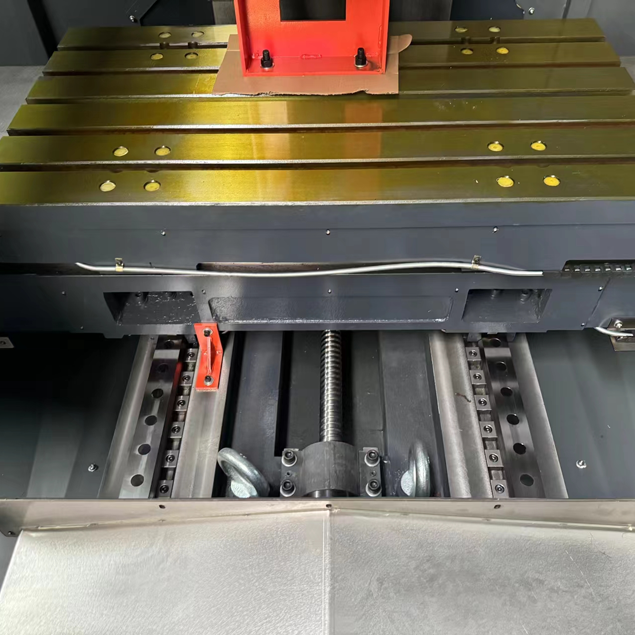

X/Y/Z adopts Taiwan’s high-precision and high-strength ball screws with special pair bearings for the ball screws and high-precision imported locking.
STANDARD ACCESSORIES:
Back row chip full cover sheet metal belt chip remover, drawer type water tank and chip box, backward impact chip washing device, full-function operation panel and hand-wheel, ATC, belt drive spindle, sprinkler cooling system at the spindle side, air cooling system at the spindle side, heat exchange device of electric cabinet, working area cleaning water gun, air gun, working light and alarm light.
OPTIONAL ACCESSORIES:
1 | Chain type chip remover(VMC850S/850/1060) |
2 | Chain type chip remover(VMC1160/1260) |
3 | Chain type chip remover(VMC1370) |
4 | Chain type chip remover(VMC1380/1580) |
5 | Chain type chip remover(VMC1890) |
6 | BT40 direct connecting spindle (12000rpm)(VMC850S~VMC1370) |
7 | Spindle central outlet function(VMC850S/850) |
8 | Spindle central outlet function(VMC1060~1890) |
9 | 4th rotary table φ250mm/320mm (FANUNC β) |
