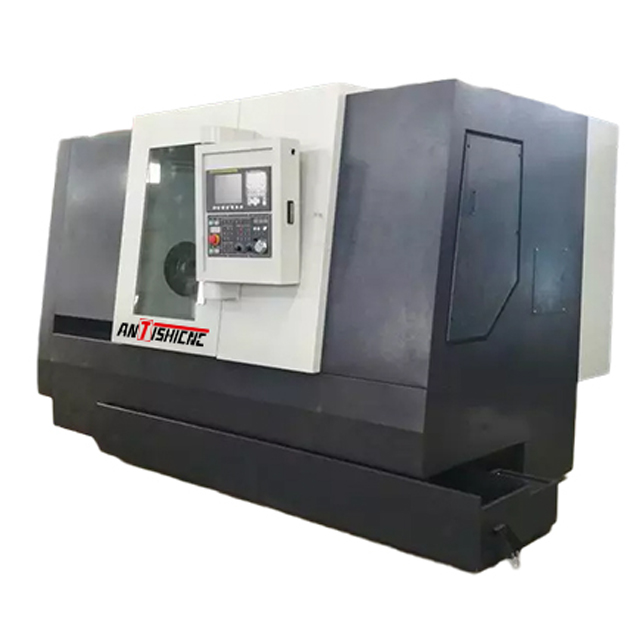

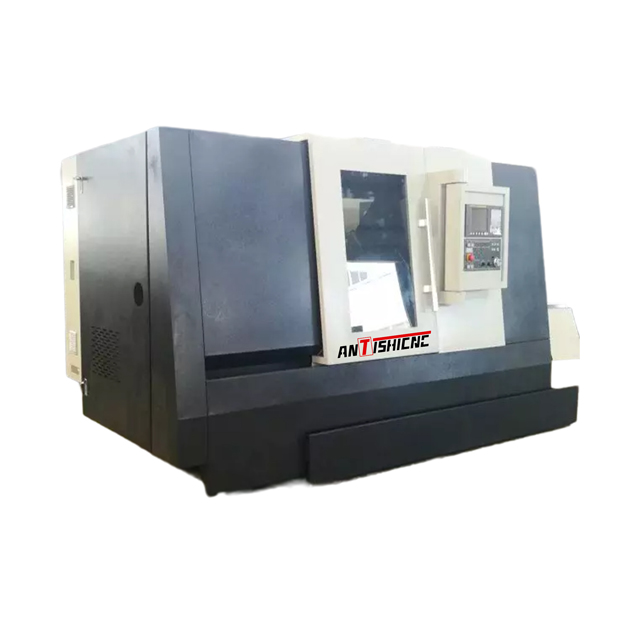

The TCK66A High Precision CNC Turning Center Slant Bed CNC Lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.

Features
1.This series of machine tools is a mature product mainly exported by Shanghai ANTS Machine Equipment Co.,Ltd. The whole machine has compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.

2.High-speed, high-precision, high-rigidity shell-type spindle unit, servo spindle motor, can reach higher spindle speed. It is suitable for the turning processing of disk and shaft parts. It can process straight lines, arcs, metric and inch threads, and multi-start threads. It can be applied to the processing of disk and shaft parts with complex turning shapes and high precision requirements.

3.Adopt 45°overall inclined bed structure, equipped with high-precision preload Taiwan linear rolling guide rail, the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.

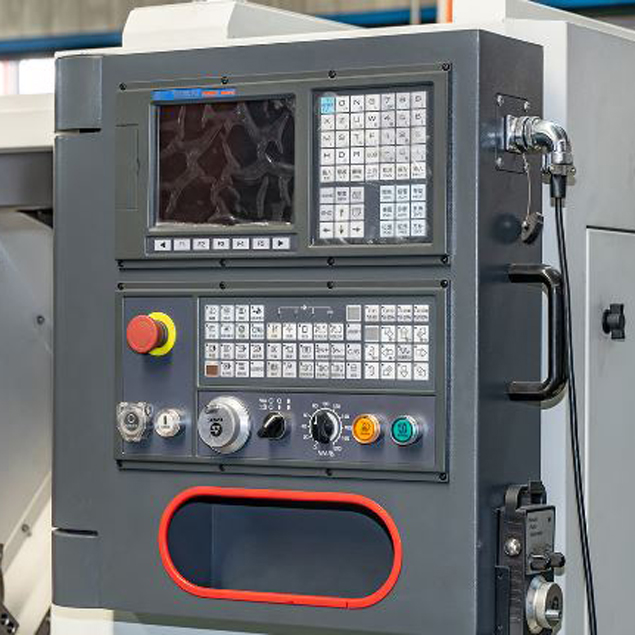

4.The CNC system adopts GSK988T system, famous ball screw and high precision screw bearing.

5.The spindle adopts high-precision spindle bearing group and has been precision assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.

6.Each lubricating point adopts a forced automatic lubricating device to lubricate the screw and guide rail at fixed points and quantitatively. When there is an abnormal state or the oil is insufficient, a warning signal will be automatically generated.

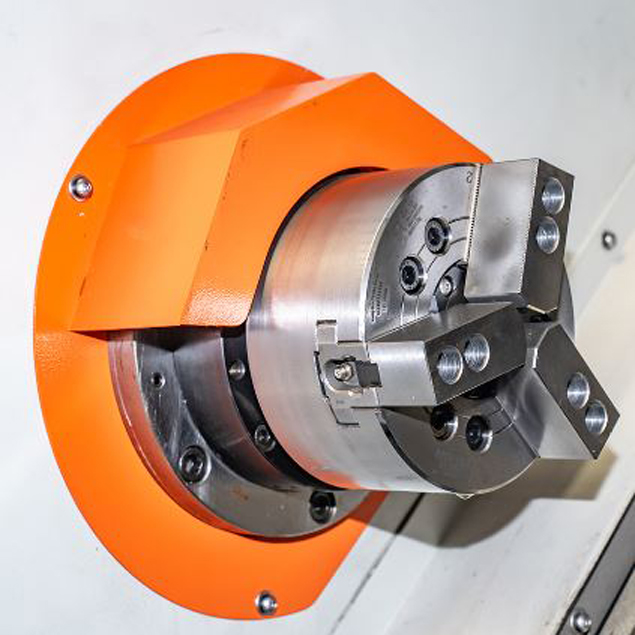

7.The standard configuration adopts domestic three-jaw self-centering hydraulic chuck.

8.The guide rail is equipped with a stainless steel protection device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of iron filings.
