CNC lathes can be customized to meet specific customer requirements, including specialized tooling and accessories, to ensure optimal performance and productivity.

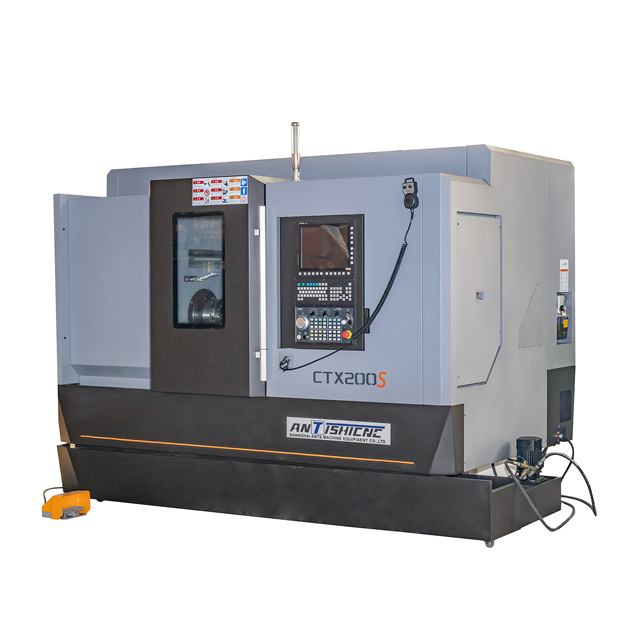

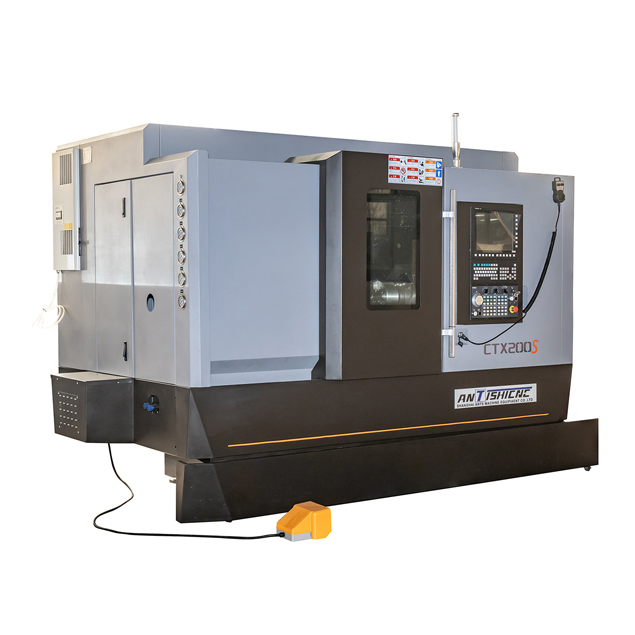

Max. Swing over Bed : Φ700mm
Swing over cross slide : Φ300mm
Max. turning length : 450mm
Specifications | Units | CTX200S | |
Max. Swing over bed | mm | Φ700 | |
Swing over cross slide | mm | Φ300 | |
Maximum shaft length | mm | 450 | |
Maximum disk processing diameter | Φ300 | ||
Maximum turning length | mm | 450 | |
Spindle
|
Spindle end type | A2-6 | |
Spindle through hole diameter | mm | Φ66 | |
Bar diameter | mm | Φ50 | |
Hydraulic chuck | Inch | 8 | |
Hydraulic chuck tie rod through hole | mm | Φ50 | |
Spindle taper hole taper | No | MT6# | |
Spindle limit speed | rpm | 4000rpm | |
Sub-spindle
|
Spindle end type | A2-6 | |
Spindle through hole diameter | mm | Φ66 | |
Bar diameter | mm | Φ50 | |
Hydraulic chuck | Inch | 8 | |
Hydraulic chuck tie rod through hole | mm | Φ50 | |
Spindle taper hole taper | No | 70/1:20 | |
Spindle limit speed | rpm | 4000rpm | |
Tool | Model | TYCSDY80HP-12T
Powered turret |
|
Tool holder model | BMT55 | ||
Y axis travel | mm | ±45 | |
Power motor torque | N.m | 15 | |
Y-axis motor torque | N.m | 6 | |
Lead screw model
|
X direction | 3210 | |
Z direction | 4010 | ||
Z2 direction (sub-spindle) | 4010 | ||
Guide rail model | X direction | RGH35HA | |
Z direction | RGH45CA | ||
Z2 direction (sub-spindle) | RGH45CA | ||
X/Z/Z2 motor torque | N.M | 15/15/15 | |
X/Z/Z2 direction rapid movement speed | m/min | 18/18/18 | |
X-direction travel | mm | 200 | |
Z-direction travel | mm | 520 | |
Minimum setting unit | mm | 0.001 | |
Main motor power | KW | 11 | |
Total power | KW | 32 | |
Machine tool net weight | Kg | 4200 | |
Overall dimensions (length × width × height) | mm | 4250*2000*2200 |
1. This series of machine tools is a mature product of ANTISHICNC. The machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
2. It adopts a 30° or 45° overall inclined bed structure and is equipped with high-precision preloaded Taiwan linear roller guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
3. It is precision assembled with high-precision spindle unit and spindle box, and the sub-spindle is precision assembled with high-precision electric spindle and sub-spindle box.
Spindle | ![]() |
The spindle adopts a high-precision spindle bearing set and has been precision assembled and dynamically balanced tested to ensure high spindle accuracy, low noise and strong rigidity. |

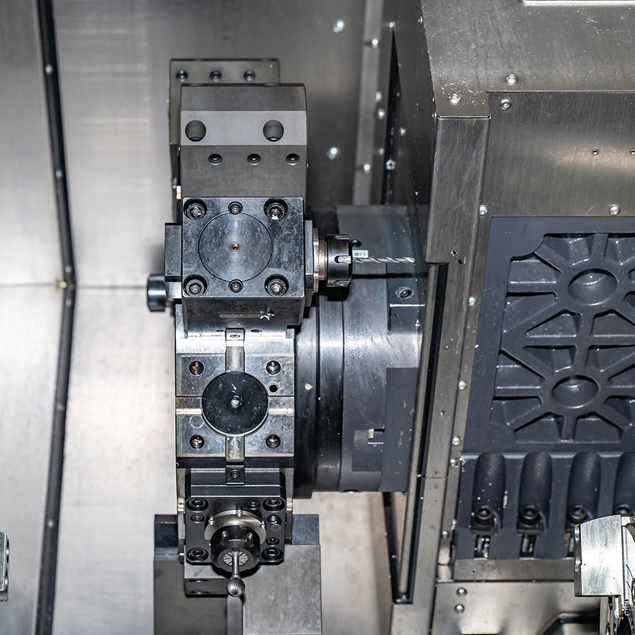

Tool holder | ![]() |
The tool changing speed is fast and the positioning accuracy is high.
Commonly used is a Y-axis powered turret. |
Chuck | ![]() |
The wedge-shaped through-hole chuck can quickly clamp and loosen the workpiece under the action of hydraulic pressure, with fast clamping speed and high precision. |
Machine transmission | ![]() ![]()
|
The screws and nuts are processed, ground, assembled and quality controlled in a constant-temperature workshop to ensure their high-precision stability. The linear rail has a small friction coefficient, fast movement speed and high precision. |

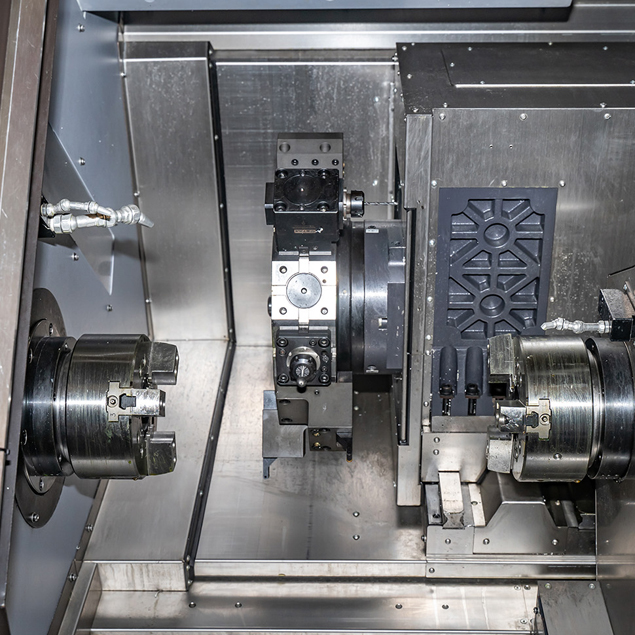

Sub-spindle | ![]() |
The electric spindle uses a high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure high spindle accuracy, low noise and strong rigidity. |
Machine tool lubrication | ![]() |
Volumetric lubrication pump, automatic lubrication, mainly bed guide rails and
The lubricating surface between the ball screw and nut is continuously supplied with oil. |
Name | Specifications | Quantity | Supplier | |
Control System | SYNTEC | 1 set | SYNTEC | |
Spindle motor | 11KW | 1 set | SYNTEC | |
Spindle unit | HN200 | 1 set | China | |
Guide
|
X direction | 1 set | 1 set | HIWIN/PMI |
Z direction | RGH45CA | 2 sets | HIWIN/PMI | |
Ball screw | X direction | 3210 | 1 set | HIWIN |
Z direction | 4010 | 2 sets | HIWIN | |
Tool | TYCSDY80HP-12T | 1 set | China | |
Automatic lubrication device | RBCLB-3ZK | 1 set | China | |
cooling pump | 550W | 1 set | China | |
hydraulic station | 1.5kw | 1 set | China | |
Hydraulic chuck | KT08-3/A2-6 | 2 sets | Taiwan-China | |
Chip conveyor | Chain plate type | 1 set | China |
