CNC lathes can produce parts with high accuracy and precision, reducing the risk of scrap and rework.
Max. Swing over Bed : Φ510mm
Max cutting length : 235mm
Max cutting diameter : Φ250mm

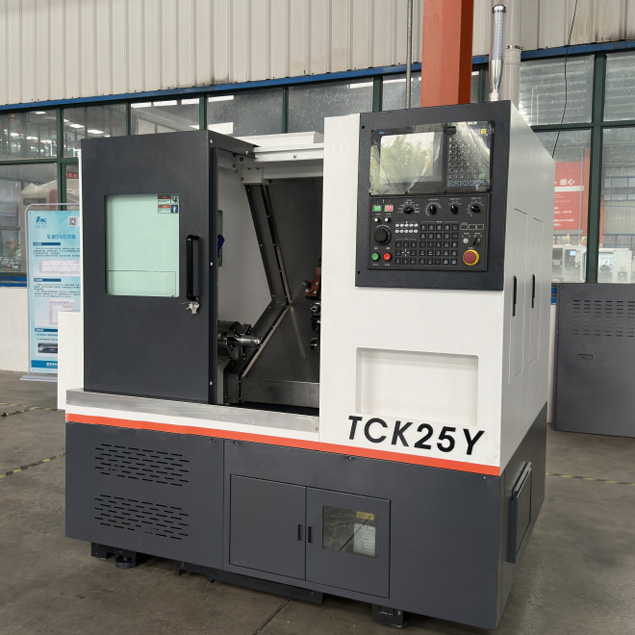

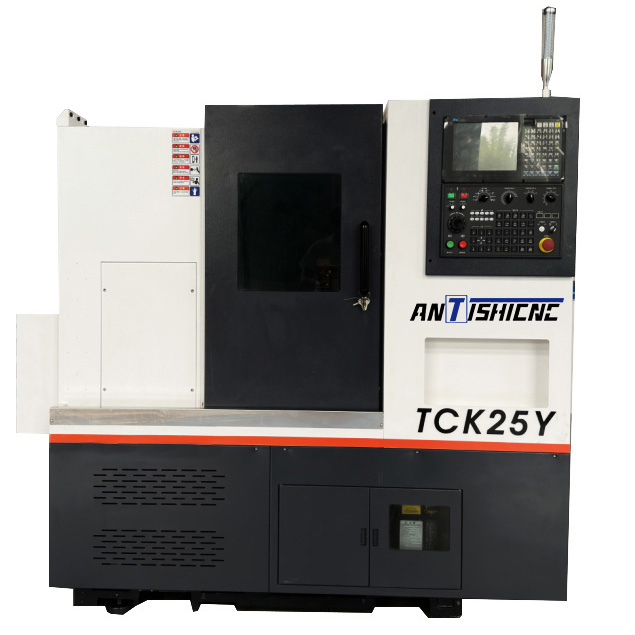

| Specifications | Units | TCK25Y | |
| Max. Swing over bed | mm | Φ510 | |
| Maximum cutting length | mm | 235 | |
| Maximum cutting diameter | mm | Disc type Φ250 Shaft type Φ150 | |
| Maximum rotation diameter on the skateboard | mm | Φ250 | |
| Spindle end type and code | A2-5 | ||
| Spindle hole diameter | mm | Φ56 | |
| Maximum bar diameter | mm | Φ44 | |
| Spindle speed range | r/min | 50～4500 | |
| Spindle maximum output torque | N·m | 107 | |
| Main motor output power | kW | 5.5/7.5
30 minutes/continuous |
|
| Chuck diameter | inch | 6² | |
| X-axis rapid movement speed | m/min | 24 | |
| Z-axis rapid movement speed | m/min | 30 | |
| Y-axis rapid movement speed | m/min | 24 | |
| X-axis travel | mm | 135 | |
| Y axis travel | mm | 60（±30） | |
| Z-axis travel | mm | 370 | |

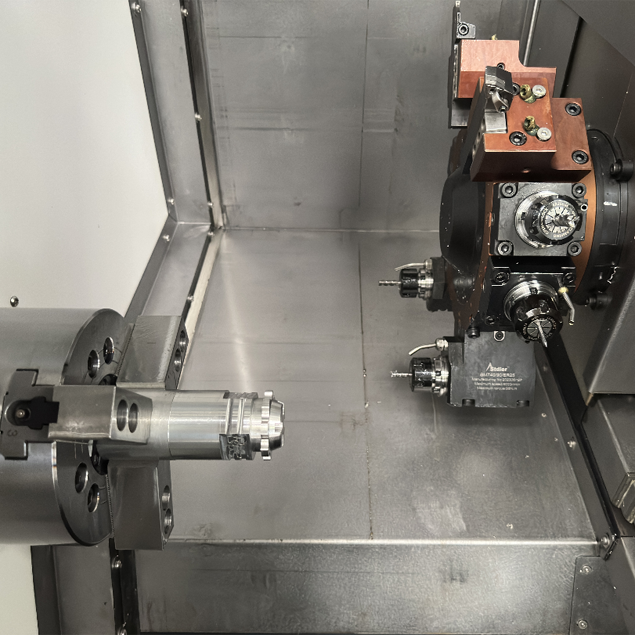

| Tool holder | Horizontal 12 stations
BMT40 |
||
| Tool size | Chuck specifications | ER20 | |
| External round knife | mm | 20×20 | |
| Boring bar diameter | mm | Ф25/Ф20 | |
| Tool holder to power head transmission ratio | 1:1 direct connection | ||
| Is it possible to choose the knife from the knife disc nearby? | yes | ||
| Machine weight | kg | 3000 | |
| weight capacity | disk type parts | kg | 100(including chuck) |
| Shaft type parts | kg | 250 (including chuck) | |
| Machine appearance (length × width × height) | mm | 1430×1025×1470 | |

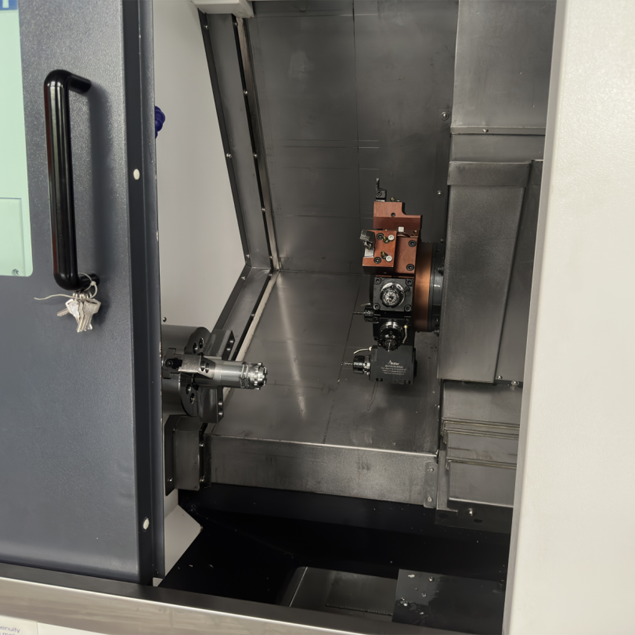

1. This series of machine tools is a mature product of ANTISHICNC. The machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
2. It adopts a 30° or 45° overall inclined bed structure and is equipped with high-precision preloaded Taiwan linear roller guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
3. It is precision assembled with high-precision spindle unit and spindle box, and the sub-spindle is precision assembled with high-precision electric spindle and sub-spindle box.
Standard Equipment
| Name | Specifications | Quantity | Supplier |
| Control System | GSK988 | 1 set | GSK |
| main motor | ZJY208A-5.5AM | 1 set | GSK |
| X-axis motor (with brake) | 130SJT-MZ100D | 1 set | GSK |
| Z-axis motor | 130SJT-M100D | 1 set | GSK |
| Y-axis motor (with brake) | 130SJT-MZ075D | 1 set | GSK |
| X-axis ball screw | φ32×12-635 | 1 set | Hiwin |
| Z-axis ball screw | φ32×12-1542 | 1 set | Hiwin |
| X-axis guide rail | 35 gauge ball | 1 set | Hiwin |
| Z-axis guide rail | 35 gauge ball | 1 set | Hiwin |
| X-axis screw bearing | 25X62X15 | 1 set | NSK/NTN |
| Z-axis screw bearing | 25X62X15 | 1 set | NSK/NTN |
| Hydraulic chuck | 6 inches hollow | 1 set | China |
| Tool holder | Horizontal 12-station Y-axis servo tool holder | 1 set | China |
| Cooling chip removal device | Right chain plate chip conveyor | 1 set | China |
Optional accessories
| Name | Specifications | Quantity |
| Control System | Siemens/Fanuc | 1 set |
