ANTISHICNC CNC Turning Milling Machines,CNC Lathes
Special hydraulic fixtures are designed. It greatly improves processing efficiency and reduces the labor intensity of workers.
Max turning diameter : Φ800mm
Max turning height : 550mm
Parameter | SAL518 | |
Machine tool structure
|
Guide rail structure | Z hard, X-ray |
Processing feed method | Liang Dong | |
Processing capacity
|
Maximum rotation diameter | Φ800mm |
Maximum turning diameter | Φ800mm | |
Maximum turning height | 550mm | |
Maximum boring height | 390mm | |
The distance between the end face of the disk and the end face of the tool holder | 880mm | |
Distance between chuck end face and tool rest end face | 810mm | |
journey
|
X-axis | 930mm(-275mm\+655mm) |
Z axis | 650mm | |
Rapid traverse rate
|
X fast traverse rate | 6m/min |
Z fast traverse rate | 6m/min | |
Spindle
|
Spindle speed | 60-800rpm |
Spindle type | A2-11 | |
Radial runout of spindle | 0.008mm | |
Factory accuracy
|
positioning accuracy | (X)±0.009mm (Z) ±0.010mm |
positioning accuracy | (X) ±0.004mm
(Z) ±0.005mm |
|
Minimum positioning unit | 0.001mm | |
Chuck and turret
|
Tool rest type | Row tool |
Flower plate (optional) | Φ800mm | |
Station | 4 | |
Chuck | 24’ | |
Control System | X-servo motor | 18NM/2000RPM |
Z servo motor (brake) | 27NM/2000RPM | |
Servo main motor | 15KW 375r/min | |
Transmission interface | USB | |
Cutting cooling and chip removal system | cooling motor | water pump |
Pump water output | 50L/min | |
Cutting fluid tank capacity | 40L | |
Chip conveyor | ||
Electricity demand | power supply | 380V |
electricity | 55A | |
Power consumption | 26KW | |
The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
environment humidity | <85% | |
Hydraulic power station | 1.5KW/50Hz-50L | |
Other parameters of the equipment | Equipment weight | 7.5 TON |
Packing size (length x width x height) | 2430X1996X3923 |

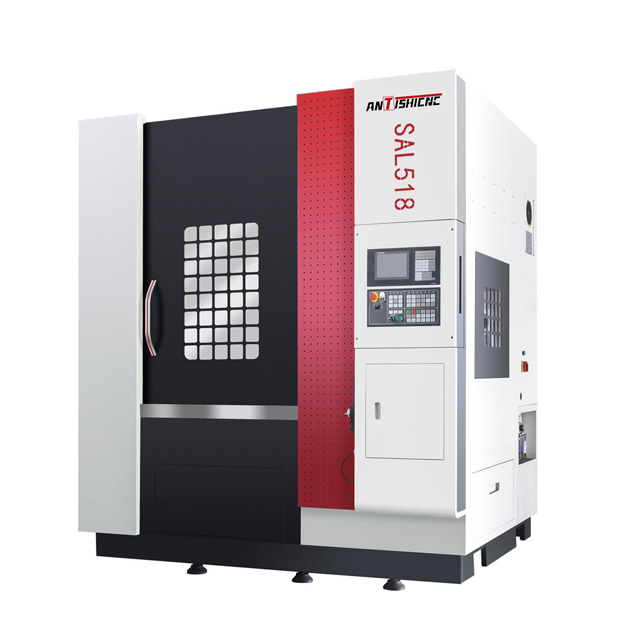

SAL518 CNC vertical lathe is suitable for processing various cast iron, cast steel and alloy non-ferrous metals, non-metallic materials and other workpieces. It can turn internal and external cylinders, planes, grooves, cones, arcs, etc. It can meet different batch production requirements, with high efficiency and stable and reliable accuracy. For processing (80-132) national standard and non-standard electric motor casings, a special hydraulic tooling fixture is designed. It greatly improves the processing efficiency and reduces the labor intensity of workers. And it can realize the machining of the upper and lower planes of the motor casing, the seam, and the iron core in one cut (divided into rough and fine turning). The later assembly accuracy and noise of the motor have been greatly improved.
Machine tools and configuration | |||
NO | Name | Specification | Quantity |
1 | Host | SAL518ZJ | 1 SET |
2 | CNC system | 1 SET | |
3 | servo Driver | 2 SETS | |
4 | X direction servo motor | 18NM/2000RPM | 2 SETS |
5 | Z direction servo motor | 27NM/2000RPM | 1 SET |
6 | X roller linear guide | RGW45HC-2-R-1560-ZB-H-II | 1 SET |
7 | Servo main motor | DH16-5-382-15/18.5-4-375 | 1 SET |
8 | Main motor servo driver | SDC-DM-4T045-GT3K | 1 SET |
9 | mainshaft bearing | NN3032K
160BTR10S NN3026K |
1 SET |
10 | X direction lead screw bearing | 760206TN/P5DB
6206 |
1 SET |
11 | Z direction lead screw bearing | 760206TN/P5TBT
6206 |
1 SET |
12 | X lead screw | FND4008-1338 | 1 SET |
13 | Z lead screw | FND5008-1135 | 1 SET |
14 | Main motor servo driver | SDC-DM-4T045-GT3K | 1 SET |
15 | angling cylinder | 150 | 1 SET |
16 | air switch | 1 SET | |
17 | intermediate relay | 1 SET | |
18 | switching power supply | · MS-200-24 | 1 SET |
19 | hydraulic pressure station | · | 1 SET |
20 | chip cleaner | · | 1 SET |
21 | Closed guard | · | 1 SET |
22 | Cabinet air conditioner | · MS-200-24 | 1 SET |
23 | Dust collector | · | 1 SET |
24 | oil drip pan | · | 1 SET |
25 | TOOL | · Vertical four-station electric tool holder | 1 SET |
26 | Data acquisition interface | · TCP | 1 SET |
27 | Paint color of machine tool body | · Ivory 1102 | 1 SET |
Optional Equipment
CNC System: Siemens/FANUC etc.
