High-speed, high-efficiency, high-rigidity processing equipment, rough and fine integration, and intensive process processing.
Max turning diameter : Φ450mm
Max turning height : 550mm
| Parameter | SAL516 | |
| Machine tool structure
|
Guide rail structure | Z hard, X-ray |
| Processing feed method | Liang Dong | |
| Processing capacity
|
Maximum rotation diameter | φ600mm |
| Maximum turning diameter | Φ450mm | |
| Maximum turning height | 550mm | |
| Maximum boring height | 280mm | |
| journey
|
X-axis | 620mm |
| Z axis | 650mm | |
| Rapid traverse rate
|
X fast traverse rate | 12m/min |
| Z fast traverse rate | 12m/min | |
| Spindle
|
Spindle speed | 100-1000r/min |
| Spindle motor power | 15Kw/1000rpm | |
| Spindle outer diameter | Φ130mm | |
| Spindle inner diameter | Φ45mm | |
| Reduction ratio | 1:2 | |
| Repeatability | ±0.005mm | |
| Factory accuracy
|
positioning accuracy | ±0.008mm |
| Minimum positioning unit | 0.001mm | |
| Chuck and turret
|
3- jaw medium solid hydraulic chuck | 15’ |
| turret | 12-station servo turret | |
| Center high of turret | 100mm | |
| Center dia. | 380mm | |
| Control System | X-servo motor | 18NM/2000RPM |
| Z servo motor | 18NM/2000RPM | |
| main motor power | 15KW/1000RPM | |
| Transmission interface | USB | |
| Cutting cooling and chip removal system
(optional) |
cooling motor | 180W |
| Pump water output | 50L/min | |
| Cutting fluid tank capacity | 70L | |
| Chip conveyor | ||
| Electricity demand | power supply | 380V |
| Power consumption | 20KW | |
| The machine tool can work stably for a long time under the following conditions | Temperature 5~38° | |
| environment humidity | ＜85% | |
| Hydraulic power station | 1.5KW/50Hz-50L | |
| Other parameters of the equipment | Equipment weight | 5 TON |
| Packing size (length x width x height) | 193X1600X2650 | |

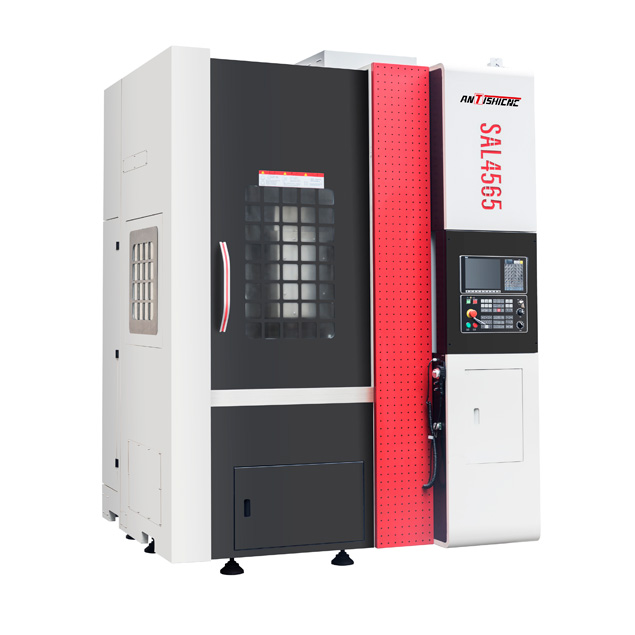

SAL4565 CNC vertical lathe is suitable for processing various cast iron, cast steel and alloy non-ferrous metals, non-metallic materials and other workpieces. It can turn internal and external cylinders, planes, grooves, cones, arcs, etc. It can meet different batch production requirements, with high efficiency and stable and reliable accuracy. For processing (80-132) national standard and non-standard electric motor casings, a special hydraulic tooling fixture is designed. It greatly improves the processing efficiency and reduces the labor intensity of workers. And it can realize the machining of the upper and lower planes of the motor casing, the seam, and the iron core in one cut (divided into rough and fine turning). The later assembly accuracy and noise of the motor have been greatly improved.
| Machine tools and configuration | |||
| NO | Name | Specification | Quantity |
| 1 | Host | SAL4565 | 1 SET |
| 2 | CNC system | 1 SET | |
| 3 | Servo Driver | CHINA | 2 SETS |
| 4 | X, Z servo motor | CHINA | 2 SETS |
| 6 | Servo main motor | DH13-2-105-11/15-4-1000 | 1 SET |
| 7 | Main motor servo inverter | SDC-CM-4T030-GT3K | 1 SET |
| 8 | mainshaft bearing | NN3026K
130BTR10S NN3016K |
1 SET |
| 9 | X-direction screw bearing | 760206TN/P5DB
6206 |
1 SET |
| 10 | Z-way screw bearing | 760206TN/P5TBT | 1 SET |
| 11 | X lead screw | DKFZD4010-1016 | 1 SET |
| 12 | Z lead screw | DKFZD4010-1085 | 1 SET |
| 13 | X linear guide | RGW45HC-2-R-1060-ZB-H-II | 1 SET |
| 14 | Z-way linear guide | RGW45HC-2-R-1300-ZB-H-II | 1 SET |
| 15 | 12- stations power tower | SHD20 | 1 SET |
| 16 | Hydraulic three-jaw chuck | 15’ | 1 SET |
| 17 | angling cylinder | 150 | 1 SET |
| 18 | air switch | ||
| 19 | intermediate relay | ||
| 20 | switching power supply | MS-200-24 taiwan-China | |
| 21 | Cabinet air conditioner | EA-1500 | |
| 22 | Closed guard | ||
| 23 | chip cleaner | ||
| 24 | Dust collector | ||
| 25 | oil drip pan | ||
| 26 | Data acquisition interface | Ethernet | |
| 27 | auto-door | ||
| 28 | automation interface | ||
Optional Equipment
CNC System: Siemens/FANUC etc.
