Suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.
Max. Swing over Bed : Φ360mm
Max. Swing over slide : Φ140mm
Max. turning length : 300mm
Specifications | Unit | TCK36A | |
Max. Swing over Bed | mm | Φ360mm | |
Max. Swing over slide | mm | Φ140mm | |
Top distance | mm | 350 | |
Max. disc machining diameter | Φ360mm | ||
Max. turning length | mm | 300 | |
Spindle end type | A2-5 | ||
Spindle through hole diameter | mm | Φ48 | |
Bar diameter | mm | Φ41 | |
Hydraulic chuck | mm | 6 inch hollow | |
Hydraulic chuck pull rod through hole | mm | Φ40 | |
Rail form | Line rail | ||
Spindle taper taper | No | 40° | |
Spindle limit speed | rpm | 4000 | |
Tailstock sleeve diameter | mm | Φ65 | |
Tailstock sleeve inner hole taper | No | Morse 4# | |
Tailstock sleeve stroke | mm | 60 | |
Tailstock form | manual | ||
Tool turret | 8 | ||
Knife square size | mm | 20×20 | |
Screw type | X direction | mm | 2810 |
Z direction | mm | 3210 | |
Rail type | X direction | mm | MSR30S2SSF1A+R960 |
Z direction | mm | MSR30S2SSF1+R630 | |
X/Z motor torque | N.M | 6/6 | |
X/Z rapid traverse speed | m/min | 24/24 | |
X travel | mm | 185 | |
Z travel | mm | 350 | |
Min. setting unit | mm | 0.001 | |
Main motor power | KW | 5.5 | |
Total power | KW | 9 | |
Machine net weight | Kg | about 2400 | |
Dimensions (L×W×H) | mm | 2200x1610x1850 |

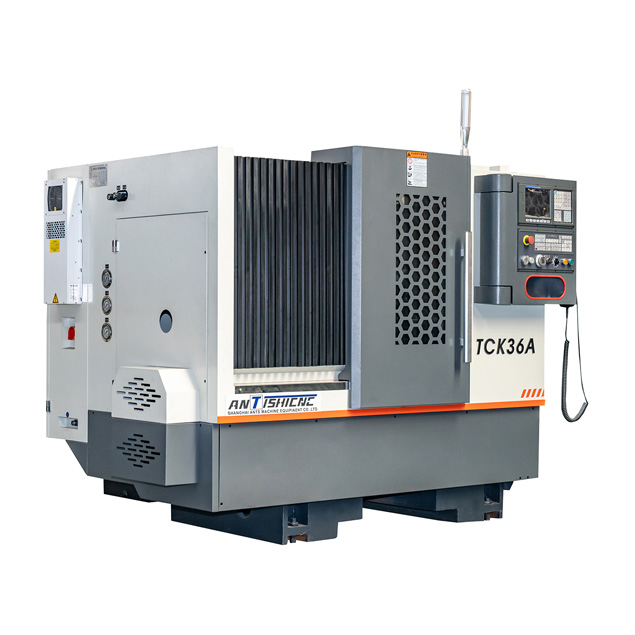

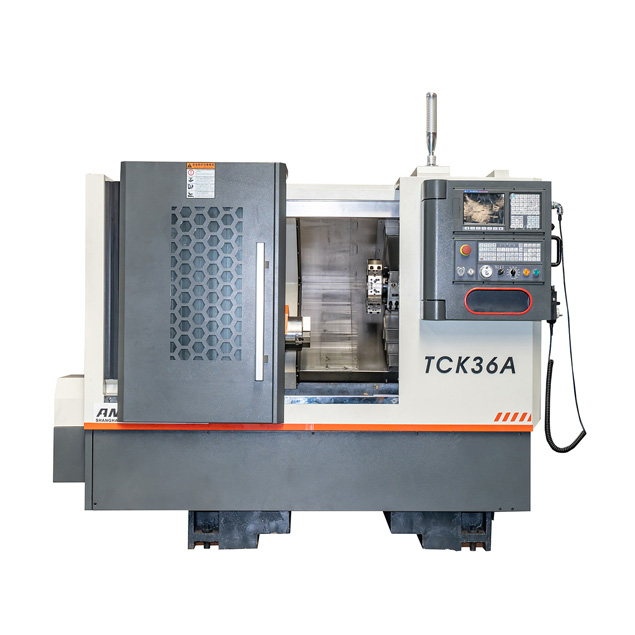

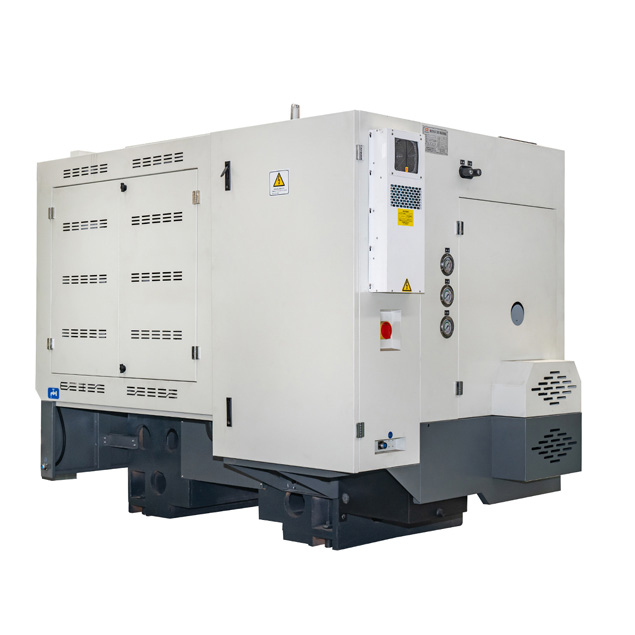

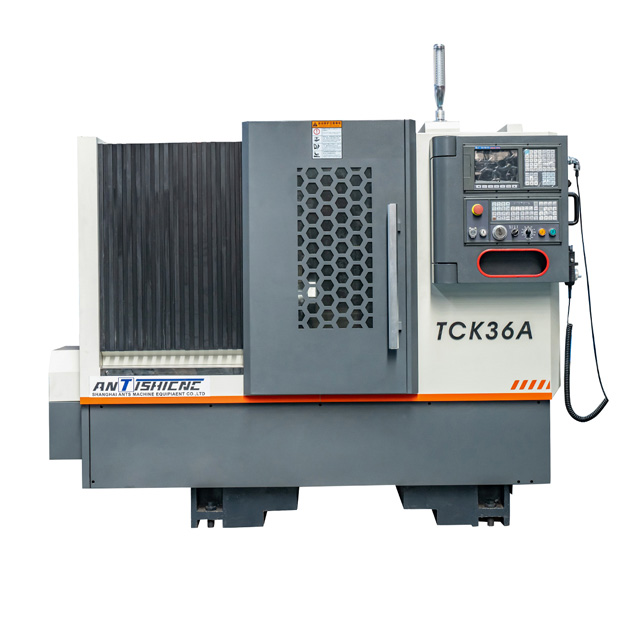

Machine tool description: This machine tool is a high-speed, high-precision, high-reliability inclined-bed machine tool. The main components such as the bed base, bed body, and headstock are all cast with high-strength materials to ensure the long-term stability of the machine tool.
The machine tool adopts a 45° overall inclined bed structure, and is equipped with high-precision preloaded Taiwan linear rolling guides. The servo motor is directly connected to the lead screw through a high-torque low-inertia elastic coupling. The lead screw support adopts a pre-stretching structure, which can eliminate transmission Backlash and pre-compensation for the influence of thermal deformation on the accuracy of the machine tool during long-term operation to ensure positioning accuracy and repeat positioning accuracy; the machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
Using high-speed, high-precision and high-rigidity cartridge-type spindle unit and servo spindle motor, it can achieve higher spindle speed. The spindle unit is assembled in a constant temperature room. After assembling, it runs at constant temperature for 72 hours, and then goes on the machine for 72 hours of continuous trial operation to ensure the reliability of high-speed and high-precision performance.
The arranging method is adopted, the tool changing speed is fast, and the positioning accuracy is high.
Machine tool protection adopts full protection design, which is pleasant, unique in appearance, reliable in waterproof and chip prevention, and easy to maintain.
Name | Specifications | Quantity | Supplier |
Control System | GSK 980TC3 | 1 set | GSK |
Spindle motor | ZJY208A-5.5BL-B35Y1 | 1 set | GSK |
Spindle | SQ140-300-4-3V | 1 set | China |
Spindle bearing | Front: 2-7015AC Rear: 2-7013AC | 1 set | China |
Guide | X:MSR30S2SSF1A+R960
Z:MSR30S2SSF1+R630 |
1 set | HIWIN/PMI |
Ball screw | 2810/3210 | 1 set | China |
Screw bearing | 25TAC62 | 1 set | China |
Machine tool turret | Hydraulic: TX120-8T
Servo: SH63820-R |
1 set | China |
Automatic lubricating device | RBCLB-3ZK | 1 set | China |
Cooling pump | PMY-50A-4 | 1 set | China |
Hydraulic station | SDPLT-02-3W-55L-TCK36A | 1 set | MONFR |
Hydraulic chuck | 6 inch hollow | 1 set | China |
Chip conveyor | Chain plate | 1 set | China |
