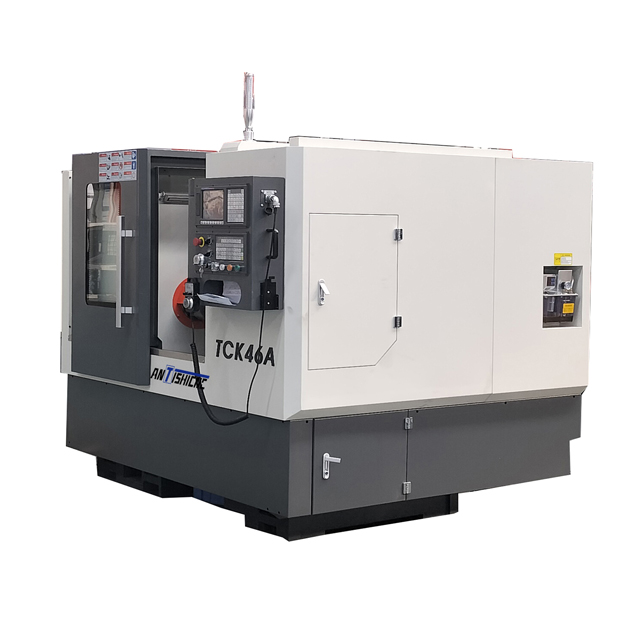

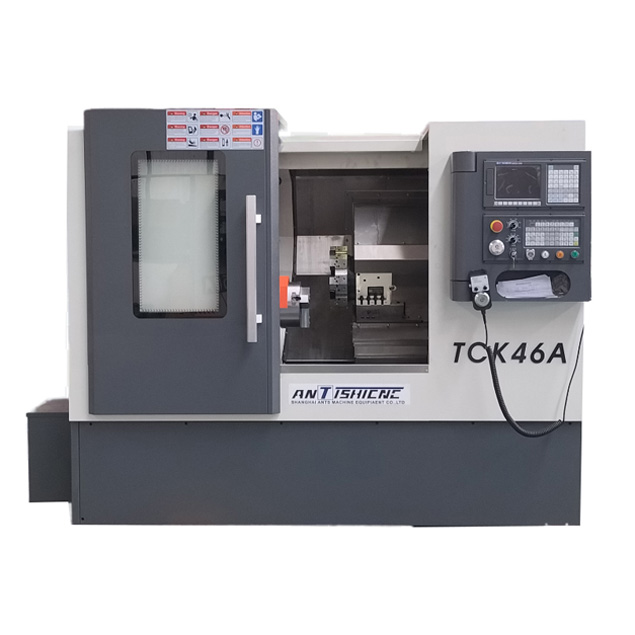

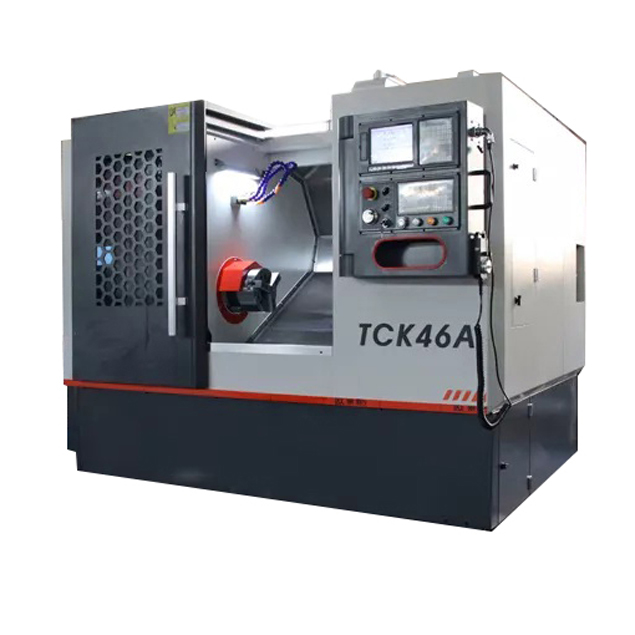

This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
Max. Swing over Bed : Φ460mm
Max. Swing over slide : Φ260mm
Max. turning length : 350mm
Specifications | Unit | TCK46A | |
Max. Swing over Bed | mm | Φ460 | |
Max. Swing over slide | mm | Φ260 | |
Top distance | mm | 500 | |
Max. disc machining diameter | Φ400 | ||
Max. turning length | mm | 350 | |
Spindle end type | A2-5 | ||
Spindle through hole diameter | mm | Φ56 | |
Bar diameter | mm | Φ45 | |
Hydraulic chuck | mm | 8 inch | |
Hydraulic chuck pull rod through hole | mm | Φ45 | |
Rail form | Line rail | ||
Spindle taper taper | No | MT6# | |
Spindle limit speed | rpm | 3500rpm | |
Tailstock sleeve diameter | mm | 70 | |
Tailstock sleeve inner hole taper | No | Morse 5# | |
Tailstock sleeve stroke | mm | 80 | |
Tailstock form | Hydraulic | ||
Tool turret | 8 | ||
Knife square size | mm | 25X25/Æ32 | |
Screw type | X direction | mm | 3210 |
Z direction | mm | 4010 | |
Rail type | X direction | mm | RGH35CA2R680 |
Z direction | mm | RGH35CA2R1040 | |
X/Z motor torque | N.M | 7.5/7.5 | |
X/Z rapid traverse speed | m/min | 18/18 | |
X travel | mm | 240 | |
Z travel | mm | 400 | |
Min. setting unit | mm | 0.001 | |
Main motor power | KW | 7.5 | |
Total power | KW | 11 | |
Machine net weight | Kg | 2800 | |
Dimensions (L×W×H) | mm | 2550*2000*2000 |
1.This series of machine tools is the mature product of the company. The whole machine has compact structure, beautiful and pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.

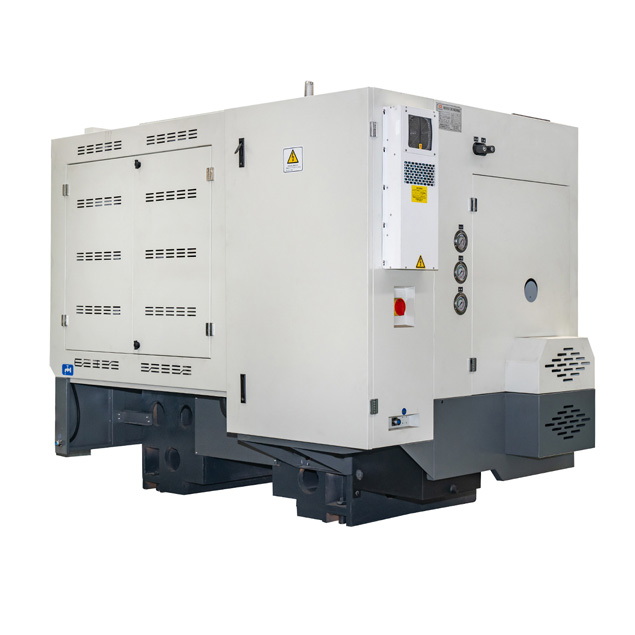

2.Adopt 30° or 45°) overall inclined bed body structure, equipped with high-precision preload Taiwan straight roller guide rail, the machine tool has high position accuracy, smooth dust discharge, suitable for high-speed and high-precision processing.
Using high precision spindle unit and spindle box precision assembly
Name | Specifications | Quantity | Supplier |
Control System | GSK988T | 1 set | GSK |
Spindle motor | 7.5KW | 1 set | GSK |
Spindle | SQ170-300 | 1 set | China |
Spindle bearing | 7017X4/7015X2 | 1 set | China |
Guide | X:RGH35CA2R680/725
Z:RGH35CA2R1040/1120/1515 |
1 set | HIWIN/PMI |
Ball screw | X:3210/703
Z:4010/965/1052/1429 |
1 set | HIWIN/PMI |
screw bearing | 25TAC62/30TAC62 | 2 sets | NSK |
Machine tool turret | TX-160A-8T/TCS-160-8T | 1 set | China |
Automatic lubricating device | RBCLB-3ZK | 1 set | China |
Cooling pump | 180W | 1 set | China |
Hydraulic station | 1.5kw | 1 set | MONFR |
Hydraulic chuck | KT08-3/A2-5 | 1 set | China |
Chip conveyor | Chain plate type (optional) | 1 set | China |
