Application of CNC lathe in electric vehicle transmission shaft manufacturing

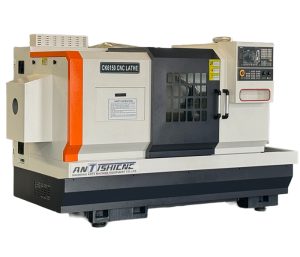

In today’s booming electric vehicle industry, the manufacturing accuracy and quality of components have become key factors affecting vehicle performance and reliability. As the core equipment of modern manufacturing industry, CNC lathe plays a vital role in the production of electric vehicle transmission shaft.

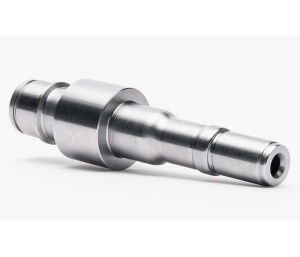

The manufacturing of transmission shafts for electric vehicles requires extremely high precision and surface quality to ensure the smoothness and efficiency of power transmission. With its advanced numerical control system and precision machining capabilities, CNC lathes can accurately cut and shape the complex shape of the drive shaft. Through the preset program and parameters, the CNC lathe can accurately process the shaft body, spline, thread and other parts of the drive shaft to ensure that the dimensional tolerance and shape and position tolerance of each part reach strict standards.

Compared with traditional machining methods, CNC lathes have obvious advantages in machining the transmission shaft of electric vehicles. It can not only automate production, reduce manual intervention, improve production efficiency and product consistency, but also quickly adjust the processing process according to different design requirements to meet the market demand for diversified products.

In addition, the application of CNC lathes has also promoted the innovation and development of transmission shaft manufacturing technology for electric vehicles. Through the integration with computer aided design (CAD) and computer aided manufacturing (CAM) software, the seamless docking from design to processing is realized, and the production efficiency and product quality are further improved.

The following is the general process of making electric vehicle transmission shaft with CNC lathes:

1.Design and planning

According to the design requirements of electric vehicle transmission, the specification, size, shape, material and other parameters of the drive shaft are determined.

Computer aided design (CAD) software is used to create 3D models of the drive shaft and detailed engineering drawings.

2.Material preparation

Select suitable high-strength alloy steel materials, such as 40Cr, 42CrMo, etc.

The raw material is cut to a suitable blank size, usually a cylindrical bar.

3.Clamping and positioning

The blank material is firmly clamped on the spindle of the CNC lathe using a chuck or special fixture.

Ensure that the center of the blank is precisely aligned with the rotating center of the lathe spindle to ensure the machining accuracy.

4.Roughing

Set the roughing parameters of CNC lathe, such as cutting speed, feed rate, cutting depth, etc.

First, the outer circle is turned to remove most of the excess material and form the rough outline of the drive shaft.

5.Semi-finishing

Adjust the machining parameters and carry out semi-finishing to further improve the surface finish and dimensional accuracy.

Turning the shaft shoulder, step, thread bottom diameter and other parts of the drive shaft.

6.Finishing

Select high-precision tools and optimized cutting parameters.

The key parts of the drive shaft, such as the outer circle, thread and spline, ensure that strict dimensional tolerances and surface roughness requirements are met.

7.Drill and boring holes

If there is a required hole or inner circle in the drive shaft, drill and boring with a drill and boring tool.

8.Quality inspection

In the process of machining, the size and surface quality are measured in real time using measuring tools such as calipers, micrometers, roughness meters, etc.

After the machining is completed, a comprehensive quality inspection is carried out, including dimensional accuracy, form and position tolerance, surface quality, etc.

As the electric vehicle market continues to expand, the demand for transmission shafts will continue to grow. As a key manufacturing equipment, CNC lathes will continue to be upgraded and optimized to provide more powerful technical support for the development of the electric vehicle industry.

If you are also a manufacturer in the automotive parts industry, or have similar processing needs, through the drawings or workpieces you provide, we will recommend the CNC lathe that best meets your processing needs. We believe that Shanghai Antishi Machinery Equipment Co., Ltd. is rich in CNC machine tool manufacturing and application experience, can provide you with professional technical support.
