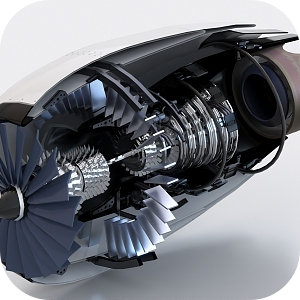

The components of aviation turbofan engines are mainly blades, turbine disks, turboshafts, magazines, ducts, nozzles and small and medium-sized structural parts.
| Description | Picture | Machining equipment |
| Engine blade |  |
 |

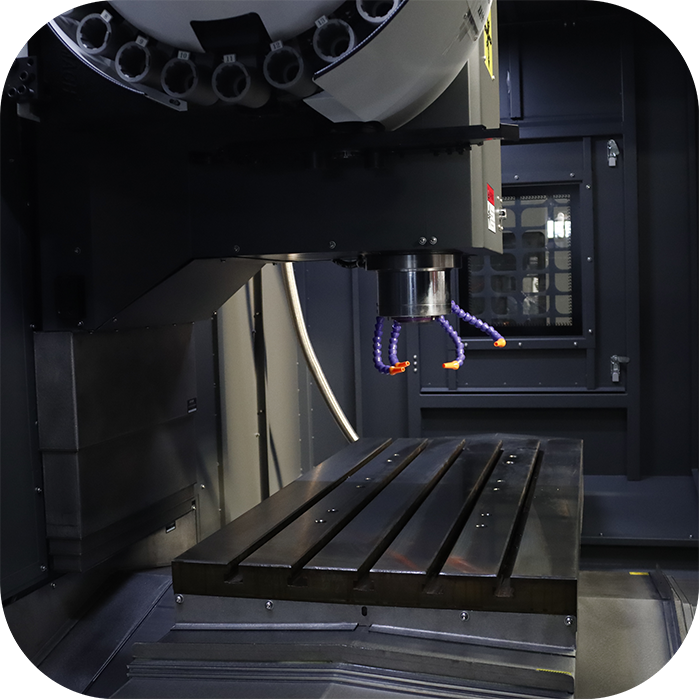

| Blade processing equipment is usually used five-axis linkage machining center, can be completed in a five-axis linkage machining center blade profile and tenon all the processing tasks.Blade profile processing is generally in the five-axis linkage blade high-speed milling machining centers, the use of carbide ball end milling cutter for high-speed milling blade profile processing. | ||

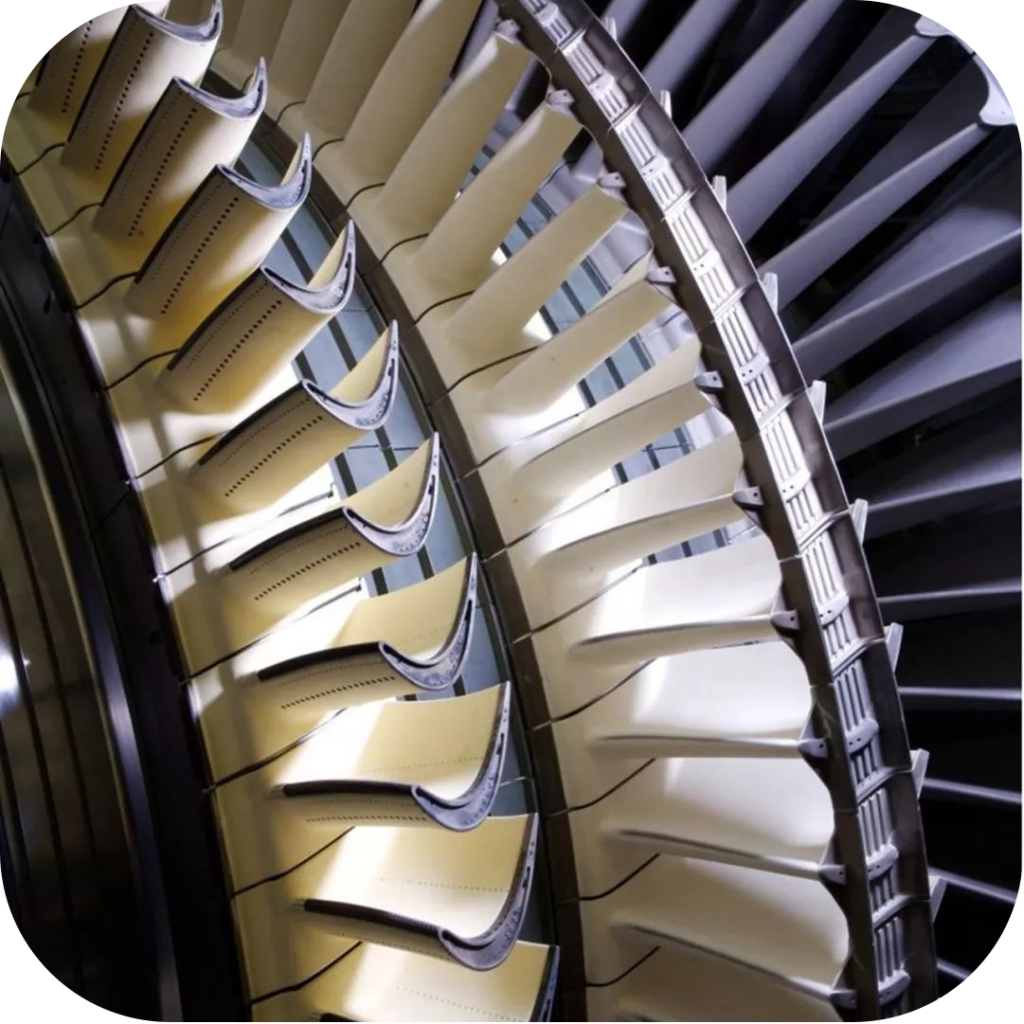

| Engine turbine disk |  |
 |

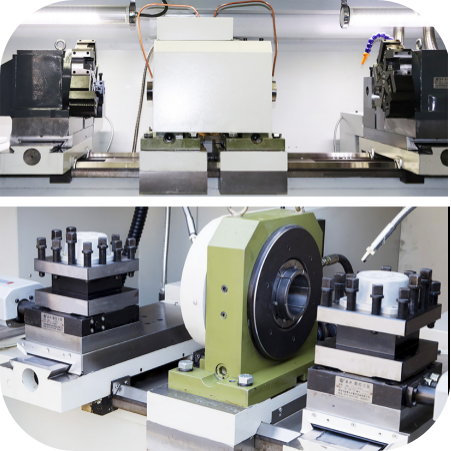

| Thin-walled disk parts can be double-sided turning machining method, the requirements of double-sided turning CNC machine tools with multi-channel function, can realize the synchronization function. | ||
| Engine turbine shaft |  |
 |

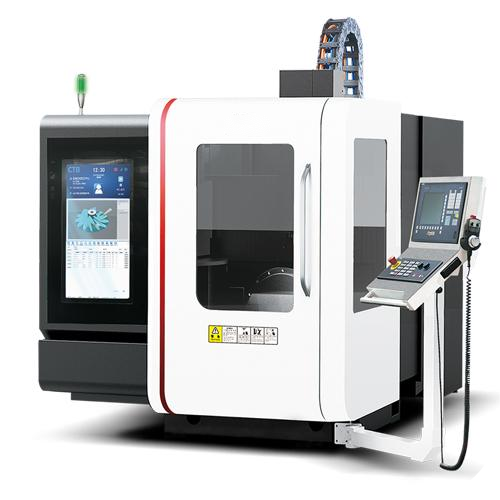

| Long shaft machining can be used for milling and turning composite machining centers, the use of damping and vibration damping lengthened shank for hollow long shaft internal control of the boring process.
Aerosol-engine disk shaft parts using aviation hard-to-machine materials, in the process of machining will produce a large cutting force, so usually inclined bed CNC horizontal lathe rigidity, machining tool overhang is shorter and more rigid. |
||
| Engine magazine |  |
 |
| Aero-engine receiver external surface is usually milled by four or five coordinate machining center. The inner cavity T-shaped channel and front and rear mounting edges are machined by CNC vertical lathe. The holes of front and rear mounting side and the holes of mounting seat and sighting hole of the external surface are milled by CNC drilling and boring machine or four or five coordinate machining center. The bolt connection holes of the horizontal mounting side of the folio magazine are processed by four-coordinate horizontal precision boring. | ||
If you have such processing needs, welcome to contact the Shanghai ANTISHICNC team, we have many years of experience, there will be a person to answer your questions.
