How to Process Socket Pins with CNC Swiss-Type Lathes?

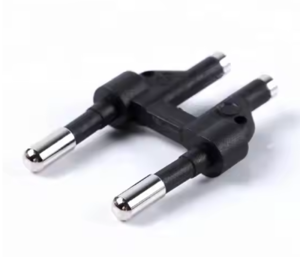

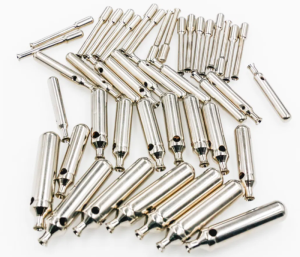

Socket pins are used for electrical connection of electronic equipment and are an indispensable part of information transmission. Pins are usually made of conductive materials and can exist in different forms, including socket type and pin tube type. CNC Swiss-type lathes have important applications in the processing and manufacturing of socket pins, which are mainly reflected in the following aspects:

1.CNC Swiss-type lathes can achieve high-precision processing. It can control the dimensional accuracy of socket pins within a very small tolerance range to ensure good contact and stable connection between pins and sockets. For example, CNC Swiss-type lathes can accurately process key dimensions such as diameter, length, and cylindricity of pins to meet high standards of electrical connection requirements.

2.CNC Swiss-type lathes have efficient processing capabilities. Through multi-axis simultaneous linkage and automated tool switching, the processing cycle is greatly shortened and production efficiency is improved. When mass-producing socket pins, it can quickly meet the large market demand.

3.CNC Swiss-type lathes can process complex shapes and structures. For some socket pins with special designs, such as chamfers, threads, steps and other features, CNC Swiss-type lathes can easily cope with them and complete multiple processes at one time.

4.CNC Swiss-type lathes can also effectively control the surface quality of the pins. By optimizing cutting parameters and tool paths, the pin surface is smooth and burr-free, thereby improving electrical performance and service life.

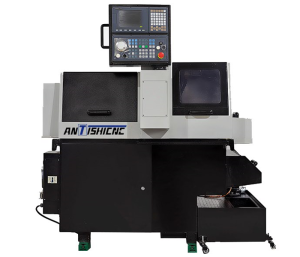

Recently, a customer of Shanghai ANTISHICNC consulted about a CNC Swiss-Type lathe for processing socket pins. This pin diameter is 3.9:5 mm, length is 3.5:4 cm, and the material is copper or brass. Our engineer successfully matched a F203E CNC Swiss-Type lathe model with an accuracy of ±0,005mm. The customer was very satisfied.

Welcome to consult!
